Product Overview
EEWB700CM

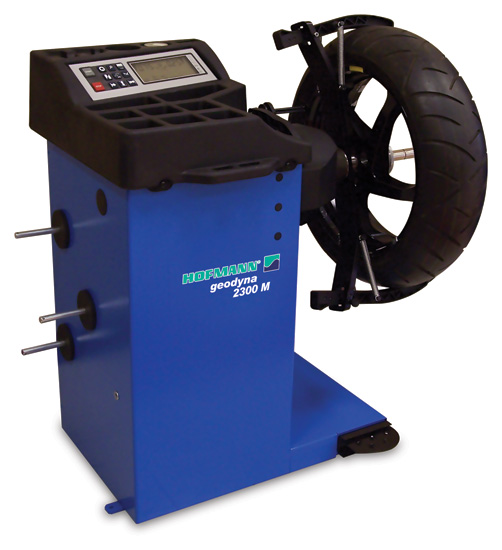

Hofmann’s geodyna 2300m is easy to use, accurate, rugged, reliable and affordable. It is specially designed to balance today’s motorcycle wheels. The geodyna 2300m features push-button start and an automatic brake, single or 2-plane balancing, and high-performance accuracy.
Click on one of the section titles to learn more about the geodyna 2300m Motorcycle Wheel Balancer.
Features
- Automatic operation - push button start - automatic brake
- One-plane (static) or two-plane (dynamic) balancing
- High-performance accuracy with low mounting system handles most applications
- Self-calibration by shop personnel eliminates down time and costly service calls
- Special wheel application kits available
Specifications
| Centering Cone Range | 17 mm - 45 mm |
|---|---|
| Shaft Diameter | 14 mm |
| Measuring Speed | 100 rpm |
| Maximum Wheel Width | 21" |
| Maximum Wheel Diameter | 30" |
| Maximum Tire Diameter | 48" |
| Maximum Wheel and Tire Assembly Weight | 150 lbs. |
| Motor | 1 HP (acceleration HP) |
| Cycle Time | From 6 seconds |
| Read-Outs | Gram or Ounce |
| Accuracy | 1g or 0.05 oz |
| Balancing Modes | 10 |
| Dimensions (DxWxH) | 16.5"x29.5"x40" |
| Shipping Weight | 375 lbs. |
| Power Requirements | 120V, 1Ph, 60HZ |
Accessories
Standard Accessories
| Part Number | Description |
|---|---|
| 24000551 |
Motorcycle Balancing Kit. Includes:
|
| EAM0005D40A | Calibration Tool |
| EAM0006G01A | Storage Pegs |
| EAA0247G21A | Wheel Width Gauge |
Optional Accessories
| Part Number | Description |
|---|---|
| EAA0283D19A |
Automotive Car/Truck Adapter Kit. Includes:
|
| EAK0221J31A | 7 Cone Kit (1.7" - 6.3") |
| 8100068 | Light Truck Cone Kit for ½, ¾ & 1 Ton (4.25" - 6.85") |
| 2401776 | Truck Cone Kit for ¾ and 1 Ton (7.7" - 8.75") |
| 8100006 | Universal Front-Mount Lugnut Adapter (3, 4, 5, 6, and 8-stud) |
| 8100007 | Universal Rear-Mount Lugnut Adapter (3, 4, 5, 6, and 8-stud) |
| 2402262 | 80 mm Truck Studs (Set of 5. Requires 8100006) |
| 2402263 | 70 mm Standard Studs (Set of 5. Requires 8100006) |
| 2402265 | 80 mm Porsche Studs (Set of 5. Requires 8100006) |
| 2402266 | 73 mm Spring-Loaded Studs (Set of 5. Requires 8100006) |
| 6411408 | ZipLock Quick-Nut |
| 6415368 | 8" Alloy Pressure Cup |
| 2000561 | Harley-Davidson ¾" Shaft Kit with 1" Adapters (Requires 24000551) |
| 35-7805 | 1" Shaft Kit for Wide Wheels, 14" Long (Requires 24000551) |
| 2003263 | Ducati Wheel Adapter (Requires 2000561 and 24000551) |
| 2001355 | Honda VFR Wheel Adapter Kit (Requires 24000551) |
| 2001140 | BMW Wheel Adapter Kit (Requires 24000551) |
| 8100016 | Sleeve/Cone Kit |
| EAK0257G76A | ATV/Quads/Golf Cart Centering Kit |
