geodyna™ 2350/2300

Mid-Range Wheel Balancers

Product Overview

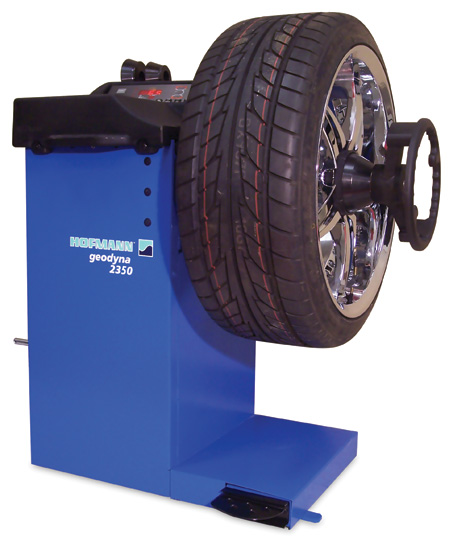

Hofmann geodyna 2350/2300 Wheel Balancer

EEWB701C

The Hofmann geodyna 2350/2300 provides the industry’s leading-edge technology in a small footprint - perfect for single-bay shops and quick-lubes where space is at a premium. The geodyna 2350/2300 is equipped with balancing features found on more expensive machines, yet is affordably priced.

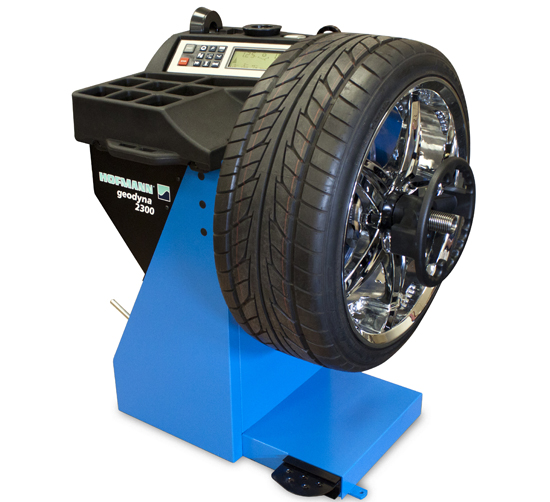

The geodyna 2350 also features an easy-to-read LED display integrated into the weight tray. The geodyna 2300 offers the same outstanding performance, with an easy-to-read LCD panel integrated into the weight tray.

  Get Adobe Reader!

Click on one of the section titles to learn more about the geodyna 2350 and 2300 Wheel Balancers.

Features



Semi-Automatic Parameter Entry

Use the geodata gauge arm to quickly and accurately capture wheel distance and also to place tape weights behind spokes or on the inside edge of the wheel.

Inner Geodata Gauge Arm Measures Wheel Distance and Diameter Inner Geodata Gauge Arm also places tape weights behind spokes or on inner edge of wheel
Inner Geodata Gauge Arm Measures Wheel Distance Inner Geodata Gauge Arm also places tape weights behind spokes or on inner edge of wheel

Back To Features List


Unsurpassed Accuracy

Improved balancing technology has 512 precise weight positions, twice as many than other brands. Special "User-Calibration" calibrates balancer in two easy steps, guaranteeing accuracy.

Back To Features List


Ten Balancing Modes

The geodyna 2350/2300 is equipped with ten different balancing modes, five alloy modes, two hidden weight, "Pro-Match" tire/wheel matching, dynamic and static to handle most wheel applications.

Back To Features List


HSP Weight Placement

Patented Hidden Spoke Placement allows the operator to hide correction weights behind the spokes on expensive wheels that have no outer flange.

Back To Features List


Longer Mounting Shaft

40 mm balancer shaft is 30% larger than most competitive brands. This standard feature allows mounting of wider wheels. The ZipLock Ring-Nut provides for one of the fastest wheel mounting/demounting systems in the industry.

Back To Features List


Available Configurations

Part Number Description
EEWB701C geodyna 2350
EEWB700C geodyna 2300

Back To Features List | Back To Top | *Patented and/or Patent-Pending Features

Specifications

Centering Cone Range 1.625" - 4.5"
Shaft Diameter 40 mm
Measuring Speed 100 rpm
Maximum Wheel Width 21"
Maximum Wheel Diameter 30"
Maximum Tire Diameter 48"
Maximum Wheel and Tire Assembly Weight 150 lbs.
Motor 1 HP (acceleration HP)
Cycle Time From 6 seconds
Read-Outs Gram or Ounce
Accuracy 1g or 0.05 oz
Balancing Modes 10
Dimensions (DxWxH) 16.5"x29.5"x40"
Shipping Weight 375 lbs.
Power Requirements 120V, 1Ph, 60HZ

Accessories

Standard Accessories

Part Number Description
EAM0005D23A Automotive Cone (1.65" - 3.03")
EAM0005D24A Automotive Cone (2.83" - 3.90")
EAM0005D25A Automotive Cone (3.78" - 4.57")
6415899 ZipLock Ring-Nut
EAC0058D07A Pressure Cup with Rubber Scratch-Proof Cap
EAM0005D40A Calibration Tool
EAM0006G01A Storage Pegs
EAA0247G21A Wheel Width Gauge

Optional Accessories

Part Number Description
EAK0221J31A 7 Cone Kit (1.7" - 6.3")
8100068 Light Truck Cone Kit for ½, ¾ & 1 Ton (4.25" - 6.85")
2401776 Truck Cone Kit for ¾ and 1 Ton (7.7" - 8.75")
8100006 Universal Front-Mount Lugnut Adapter (3, 4, 5, 6, and 8-stud)
8100007 Universal Rear-Mount Lugnut Adapter (3, 4, 5, 6, and 8-stud)
2402262 80 mm Truck Studs (Set of 5. Requires 8100006)
2402263 70 mm Standard Studs (Set of 5. Requires 8100006)
2402265 80 mm Porsche Studs (Set of 5. Requires 8100006)
2402266 73 mm Spring-Loaded Studs (Set of 5. Requires 8100006)
6411408 ZipLock Quick-Nut
6415368 8" Alloy Pressure Cup
24000551 Motorcycle Balancing Kit. Includes:
2000561 Harley-Davidson ¾" Shaft Kit with 1" Adapters (Requires 24000551)
35-7805 1" Shaft Kit for Wide Wheels, 14" Long (Requires 24000551)
2003263 Ducati Wheel Adapter (Requires 2000561 and 24000551)
2001355 Honda VFR Wheel Adapter Kit (Requires 24000551)
2001140 BMW Wheel Adapter Kit (Requires 24000551)
EAK0257G76A ATV/Quads/Golf Cart Centering Kit
