Product Overview
EEWB703B

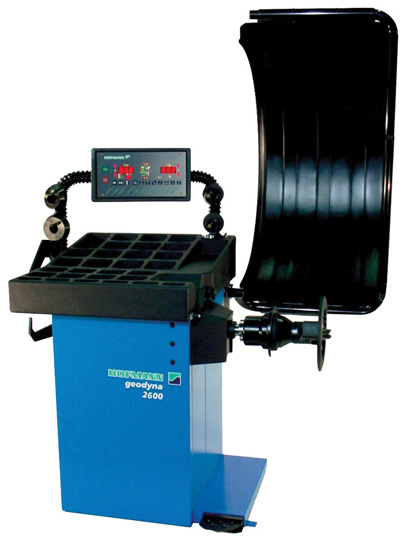

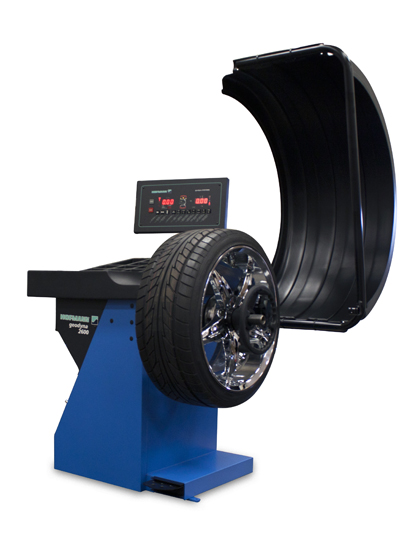

The Hofmann geodyna 2600 premium wheel balancer is designed for multi-bay repair shops and professional tire stores that require maximum speed and accuracy. The geodyna 2600 takes advantage of our patented Virtual Plane Measurement (VPM) technology and features Hidden Spoke Placement (HSP) and Operator Selectable Positioning (OSP) balancing modes. The geodyna 2600 also features semi-automatic entry of wheel diameter and distance, and automatic wheel weight indexing. This time-saving feature rotates the tire automatically to the correction location.
Click on one of the section titles to learn more about the geodyna 2600 Wheel Balancer.
Features
Semi-Automatic Parameter Entry
Use the geodata gauge arm to quickly and accurately capture wheel distance and diameter, and also to place tape weights behind spokes or on the inside edge of the wheel.
 |
 |
| Inner Geodata Gauge Arm Measures Wheel Distance and Diameter | Inner Geodata Gauge Arm also places tape weights behind spokes or on inner edge of wheel |
Unsurpassed Accuracy
Improved balancing technology has 512 precise weight positions, twice as many than other brands. Special "User-Calibration" calibrates balancer in two easy steps, guaranteeing accuracy.
Ten Balancing Modes
The geodyna 2600 series is equipped with ten different balancing modes, five alloy modes, two hidden weight, "Pro-Match" tire/wheel matching, dynamic and static to handle most wheel applications.
HSP/OSP Weight Placement
Patented Hidden Spoke Placement allows the operator to hide correction weights behind the spokes on expensive wheels that have no outer flange. Patented Operator Selectable Positioning allows the operator to select the correction location by wheel design.
Back To Features List | Back To Top | *Patented and/or Patent-Pending Features
Specifications
| Centering Cone Range | 1.625" - 4.5" |
|---|---|
| Shaft Diameter | 40 mm |
| Measuring Speed | 200 rpm |
| Maximum Wheel Width | 21" |
| Maximum Wheel Diameter | 30" |
| Maximum Tire Diameter | 44" |
| Maximum Wheel and Tire Assembly Weight | 150 lbs. |
| Motor | 1 HP (acceleration HP) |
| Cycle Time | From 6 seconds |
| Read-Outs | Gram or Ounce |
| Accuracy | 1g or 0.05 oz |
| Balancing Modes | 10 |
| Dimensions (DxWxH) | 62"x52"x58" |
| Shipping Weight | 400 lbs. |
| Power Requirements | 120/230V, 1Ph, 60HZ |
Accessories
Standard Accessories
| Part Number | Description |
|---|---|
| EAM0005D23A | Automotive Cone (1.65" - 3.03") |
| EAM0005D24A | Automotive Cone (2.83" - 3.90") |
| EAM0005D25A | Automotive Cone (3.78" - 4.57") |
| 6415899 | ZipLock Ring-Nut |
| EAC0058D07A | Pressure Cup with Rubber Scratch-Proof Cap |
| EAM0005D40A | Calibration Tool |
| EAM0006G01A | Storage Pegs |
| 00058839000 | Weight Pliers |
| EAA0247G21A | Wheel Width Gauge |
Optional Accessories
| Part Number | Description |
|---|---|
| EAK0221J31A | 7 Cone Kit (1.7" - 6.3") |
| 8100068 | Light Truck Cone Kit for ½, ¾ & 1 Ton (4.25" - 6.85") |
| 2401776 | Truck Cone Kit for ¾ and 1 Ton (7.7" - 8.75") |
| 8100006 | Universal Front-Mount Lugnut Adapter (3, 4, 5, 6, and 8-stud) |
| 8100007 | Universal Rear-Mount Lugnut Adapter (3, 4, 5, 6, and 8-stud) |
| 2402262 | 80 mm Truck Studs (Set of 5. Requires 8100006) |
| 2402263 | 70 mm Standard Studs (Set of 5. Requires 8100006) |
| 2402265 | 80 mm Porsche Studs (Set of 5. Requires 8100006) |
| 2402266 | 73 mm Spring-Loaded Studs (Set of 5. Requires 8100006) |
| 6411408 | ZipLock Quick-Nut |
| 6415368 | 8" Alloy Pressure Cup |
| 24000551 |
Motorcycle Balancing Kit. Includes:
|
| 2000561 | Harley-Davidson ¾" Shaft Kit with 1" Adapters (Requires 24000551) |
| 35-7805 | 1" Shaft Kit for Wide Wheels, 14" Long (Requires 24000551) |
| 2003263 | Ducati Wheel Adapter (Requires 2000561 and 24000551) |
| 2001355 | Honda VFR Wheel Adapter Kit (Requires 24000551) |
| 2001140 | BMW Wheel Adapter Kit (Requires 24000551) |
| EAK0257G76A | ATV/Quads/Golf Cart Centering Kit |
