Product Overview
EEWB723A

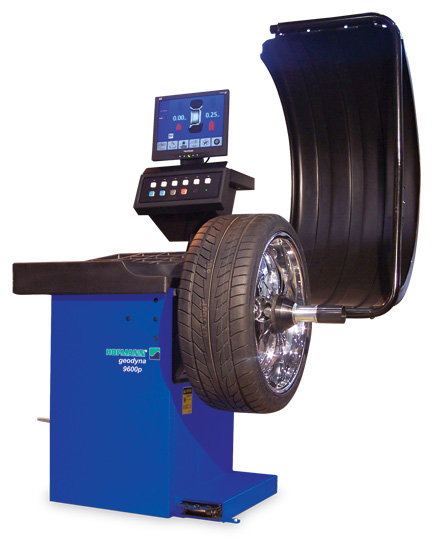

The Hofmann geodyna 9600p is a high-performance, feature-packed wheel balancer designed for high-volume tire shops. The geodyna 9600p delivers the fastest floor-to-finish time of any wheel balancer on the market. The technician simply places the wheel onto the balancer shaft and taps on the foot pedal to activate the Power Clamp, then closes the wheel guard and the balancer does the rest.
Click on one of the section titles to learn more about the geodyna 9600p Wheel Balancer.
Features
Automatic Data Entry
The geodyna 9600p automatically captures a 3-Dimensional image of the tire/wheel using using a combination of laser imaging and sonic sensor to obtain the wheel and tire parameters.
Power Clamp
The geodyna 9600p automatically clamps the tire and wheel assembly in place with a simple touch of the foot brake. Wheel clamping pressure is automatically monitored by the balancers computer system insuring repeatable results.
Data Freeze
This software feature allows the technician to save the wheel data from the first tire balanced, reducing the cycle time and increasing productivity.
Automatic Spoke Placement*
The laser imaging camera automatically counts and identifies spoke position during the balancing cycle. The technician is guided by on-screen prompts and a laser pointer to position the correction weight behind the spoke.
Tire/Wheel Matching
The geodyna 9600p features either wheel only or tire and wheel matching for a precision balance. The technician is guided by easy-to-use on-screen prompts through the matching procedure.
WeightMiser™
Optional WeightMiser™ software determines the possibility of reducing static and dynamic imbalance below the given thresholds using a single weight. If a single weight approach is feasible, then it is recommended. If not, then two-weight balancing is recommended with amounts lower than precision balance recommendations.
WeightMiser also features a Weight Savings screen. This screen is a counter that tracks WeightMiser savings. It accepts input for dollar amounts on the cost of tape and clip type weights (by the pound) and runs daily and cumulative totals, for instant reviews of your savings!
Weight Wizard*
Weight Wizard Wheel Weight Management Software tracks both the types of weights and weight sizes that are actually being used. Knowing the most popular usage, the shop can tailor the weight purchasing requirements by location and avoid excessive expense and waste.
The inner scanner determines the wheel’s rim profile for the weight type as defined by industry recognized standards for clip weight type. The clip shape and weight color code is indicated across the top row of the weight usage chart. Weight amounts are listed along the side. Upon un-clamping the wheel, the weight type, including both clip type and adhesive weight type, and weight amount are written to the Weight Wizard weight usage tracking file.
Back To Features List | Back To Top | *Patented and/or Patent-Pending Features
Specifications
| Centering Cone Range | 1.625" - 4.5" |
|---|---|
| Shaft Diameter | 40 mm |
| Measuring Speed | 200 rpm |
| Maximum Wheel Width | 21" |
| Maximum Wheel Diameter | 30" |
| Maximum Tire Diameter | 44" |
| Maximum Wheel and Tire Assembly Weight | 154 lbs. |
| Motor | 1 HP (acceleration HP) |
| Cycle Time | From 6 seconds |
| Read-Outs | Gram or Ounce |
| Accuracy | 1g or 0.05 oz |
| Balancing Modes | 10 |
| Dimensions (DxWxH) | 62"x52"x58" |
| Shipping Weight | 560 lbs. |
| Power Requirements | 120V, 1Ph, 60HZ |
Accessories
Standard Accessories
| Part Number | Description |
|---|---|
| EAM0005D23A | Automotive Cone (1.65" - 3.03") |
| EAM0005D24A | Automotive Cone (2.83" - 3.90") |
| EAM0005D25A | Automotive Cone (3.78" - 4.57") |
| EAC0058D07A | Pressure Cup with Rubber Scratch-Proof Cap |
| EAM0005D40A | Calibration Tool |
| EAM0006G01A | Storage Pegs |
| 00058839000 | Weight Pliers |
Optional Accessories
| Part Number | Description |
|---|---|
| EAK0221J31A | 7 Cone Kit (1.7" - 6.3") |
| 8100068 | Light Truck Cone Kit for ½, ¾ & 1 Ton (4.25" - 6.85") |
| 2401776 | Truck Cone Kit for ¾ and 1 Ton (7.7" - 8.75") |
| 8100006 | Universal Front-Mount Lugnut Adapter (3, 4, 5, 6, and 8-stud) |
| 2402262 | 80 mm Truck Studs (Set of 5. Requires 8100006) |
| 2402263 | 70 mm Standard Studs (Set of 5. Requires 8100006) |
| 2402265 | 80 mm Porsche Studs (Set of 5. Requires 8100006) |
| 2402266 | 73 mm Spring-Loaded Studs (Set of 5. Requires 8100006) |
| 6415368 | 8" Alloy Pressure Cup |
| EAK0221J43A | Printer Kit |
