Product Overview
EEWA715AL
The geoliner 670 imaging alignment system is equipped with our Pro-32 software package which features advanced imaging technology to deliver fast and accurate alignments. Our patented VODI Graphic Display is used with High-Definition (HD) cameras to provide visual and directional assistance to the technician during the alignment measuring procedure. The geoliner 670 also includes animated adjustment aids that give technicians the benefit of on-screen visual aids for vehicle specific adjustments to save time and money by getting the job done right the first time every time. (Shown with Optional Variable-Height Camera Support)
Click on one of the section titles to learn more about the geoliner 670 Wheel Alignment System.
Features
Set-up To Readings In Under 2 Minutes
Imaging technology allows you to do more alignments in less time. The patented non-electronic shatter-proof wheel targets eliminate service calls for calibrations and wheel sensor maintenance.
Shortbay
High-Definition Imaging Cameras allow for system installation within a smaller shop bay!
VODI*™
VODI™* Graphic Display - graphic overlay around each camera provides visual and directional assistance to the operator during the alignment measurement.
2-Wheel Alignment Capability*
Great for performing 2-wheel alignment checks on fixed rear axle vehicles. Camber and Toe measurements in less than one minute!
Ride Height Technology*
As the system provides step-by-step instructions, simply hold the TIP (Target Imaging Pointer) against the vehicle touch points and this exclusive digital imaging tool measures OEM specifications to ±0.05". The screen provides a live camera view to aid in target placement and an audible signal to indicate when each measurement is complete.
Intuitive Measurement
Measurement of caster, toe out on turns and maximum steering angle can be done by simply turning the steering wheel ONCE to the left and right. The system recognizes your steering input and anticipates the next measurement.
Animated Adjustment Aid
Technicians benefit from on-screen visual aids for vehicle-specific adjustments, including instructions, comments and necessary tools.
24" Universal Wheel Clamps
- Heavy-duty chrome rods and nickel-plated screw
- Thin profile tip fits most wheel/tire combinations
- Extended tip with thin profile allows clamping over plastic wheel covers
- Outside clamping for 15" to 24" wheels
- Inside clamping for 13" to 20" wheels
- Constructed from aluminum for light-weight handling. Silver finish for durability and corrosion resistance
- Optional Clamp Extensions (EAK0268J62A) increase maximum clamping diameter to 28"
Optional Alloy Quick Clamp Kit
(EAK0268J63A) Allows accurate clamping without risk of scratching the wheel finish. Provides secure attachment to wheel while plastic sleeves placed over standard claws ensure proper placement and wheel protection.
Productivity-Enhancing Features |
|
|
|
Measurements |
|
|
|
Back To Features List | Back To Top | *Patented and/or Patent-Pending Features
Specifications
| Wheel Size | 13" - 24" |
|---|---|
| Tire Diameter | Unlimited |
| Track Width | 48" - 96" |
| Wheelbase | 79" - 180" |
| Power Requirements | 120/230V, 1Ph, 60HZ |
Accessories
Standard Accessories
| Part Number | Description |
|---|---|
| 00055502000 | Steering Wheel Holder |
| 00000096000 | Brake Pedal Depressor |
| EAK0289J23A | Remote Control |
| EAA0305J48A | Camera Beam Assembly |
| EAK0268J52A | Universal Wheel Clamps (13" - 24", Set of 4) and Shatter-proof Imaging Targets (2 Front and 2 Rear) |
Recommended Accessories
| Part Number | Description |
|---|---|
| EAK0289J06A | Premium Turntables |
| EAK0277J28A | Paddle Kit for Premium Turntables |
| EAK0277J39A | 4-Post Rollback Kit |
| EAK0277J40A | 12K Scissor Rollback Kit |
| EAK0277J47A | 12K Scissor Roll Forward/Rollback Kit |
| EAK0277J67A | 10K/14K Scissor Rollback Kit |
| EAK0277J45A | Hunter/Rotary Rollback Kit |

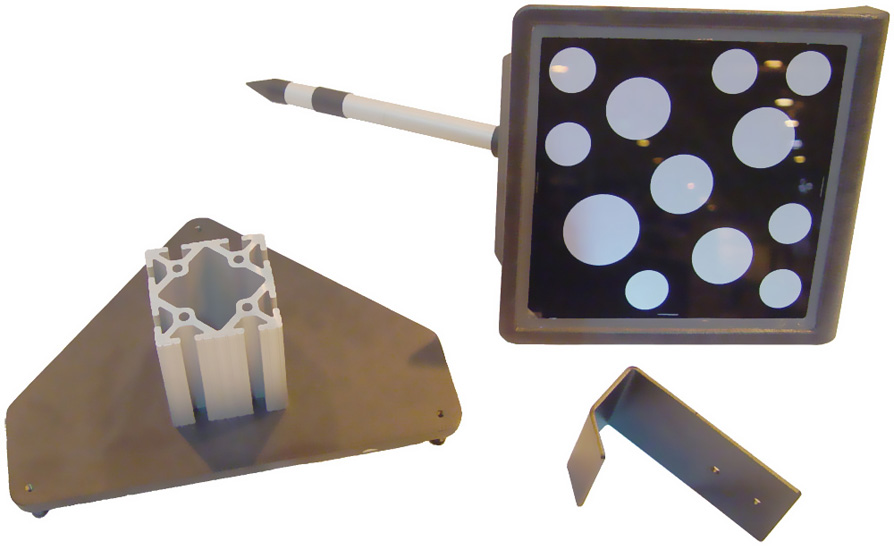

| EAK0256J71A | Ride Height Target Kit |
Optional Accessories
| Part Number | Description |
|---|---|
| EAK0222J17A | Voice Align™* Kit |
| 8-05320A | Frame Angle Gauge |
| EAK0268J62A | Universal Wheel Clamp Extension Kit (to 28") |
| EAK0268J63A | Alloy Quick Clamp Kit |
| EAK0268J08A | Remote Display Readout with 30’ Cable |
| P-1826 | Convex Mirror 36" Wide with Hardware |

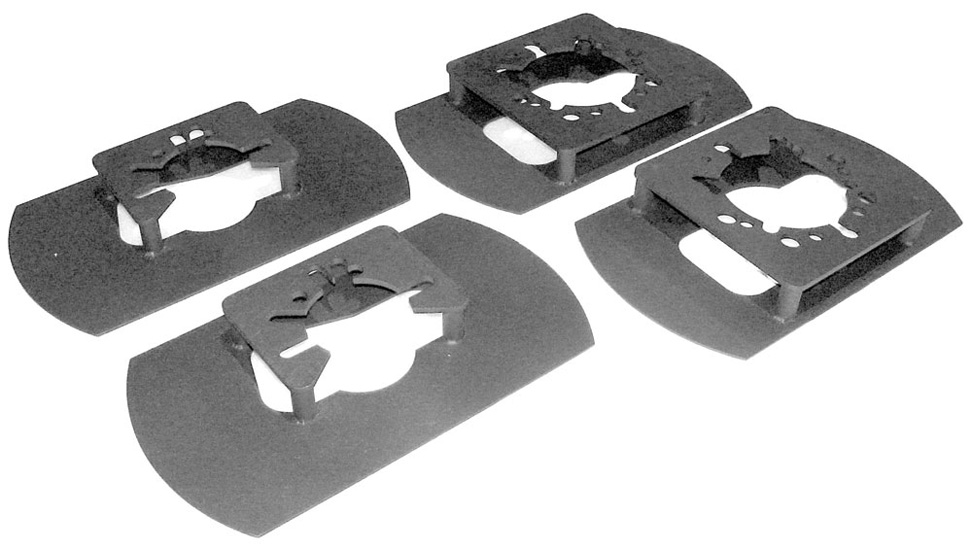

| EAK0222J83A | Hub Adapter Kit (Wheel-Off Alignment) |
| EAK0289J71A | Universal Wheel Clamp Floor Stand |
Optional Camera Support Configurations
| Part Number | Description |
|---|---|
| EAA0321J19C | Variable-Height Camera Support |
| EAA0321J01A | Fixed-Height Camera Support |
| EAK0289J36A | Wall/Pit Camera Support (Adjustable 36" - 60". Includes Convex Mirror) |
| EAK0289J63A | Wall/Pit Camera Support (8") |
| EAK0289J64A | Electronic-Tilt Camera System |
