Product Overview

The geoliner 650 imaging alignment system is equipped with our basic software package which combines the benefits of camera technology and quality at an affordable cost. Our patented VODI Graphic Display is used with High-Definition (HD) cameras to provide visual and directional assistance to the technician during the alignment measuring procedure. The geoliner 650 will boost your shops productivity by allowing technicians to do more alignments is less time compared to conventional systems. (Shown with Optional Variable-Height Camera Support)

  Get Adobe Reader!

Click on one of the section titles to learn more about the geoliner 650 Wheel Alignment System.

Features




Set-up To Readings In Under 2 Minutes

Imaging technology allows you to do more alignments in less time. The patented non-electronic shatter-proof wheel targets eliminate service calls for calibrations and wheel sensor maintenance.

Set-up To Readings In Under 2 Minutes

Back To Features List




EZ-Link

EZ-Link* Steering Angle Sensor Reset

EZ-Link* software alerts the technician of OEM service and maintenance procedures related to Electronic Stability Control and Electric Power Steering systems.

OEM instructions guide the technician through the process of resetting the steering angle sensors along with other sensors as required. EZ-Link includes manual as well as electronic resets.

EZ-Link

Back To Features List

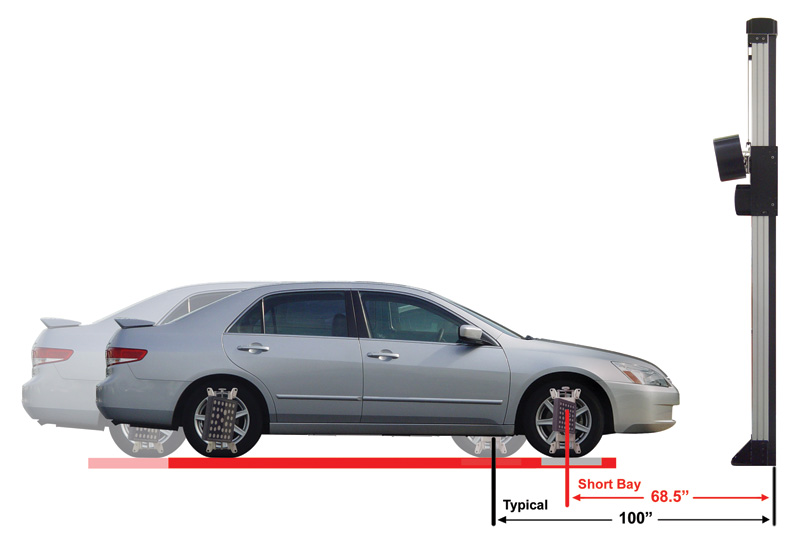

Shortbay

Shortbay

High-Definition Imaging Cameras allow for system installation within a smaller shop bay!

Back To Features List




VODI

VODI*™

VODI™* Graphic Display - graphic overlay around each camera provides visual and directional assistance to the operator during the alignment measurement.

Back To Features List



2-Wheel Alignment Capability

2-Wheel Alignment Capability*

Great for performing 2-wheel alignment checks on fixed rear axle vehicles. Camber and Toe measurements in less than one minute!

Back To Features List



Animated Adjustment Aid

Animated Adjustment Aid

Technicians benefit from on-screen visual aids for vehicle-specific adjustments, including instructions, comments and necessary tools.

Back To Features List



Universal Wheel Clamps

24" Universal Wheel Clamps

  • Heavy-duty chrome rods and nickel-plated screw
  • Thin profile tip fits most wheel/tire combinations
  • Extended tip with thin profile allows clamping over plastic wheel covers
  • Outside clamping for 15" to 24" wheels
  • Inside clamping for 13" to 20" wheels
  • Constructed from aluminum for light-weight handling. Silver finish for durability and corrosion resistance
  • Optional Clamp Extensions (EAK0268J62A) increase maximum clamping diameter to 28"

Back To Features List



EAK0268J63A: Optional Alloy Quick Clamp Kit

Optional Alloy Quick Clamp Kit

(EAK0268J63A) Allows accurate clamping without risk of scratching the wheel finish. Provides secure attachment to wheel while plastic sleeves placed over standard claws ensure proper placement and wheel protection.

Back To Features List



Features

  • SAI and Thrust Angle
  • Included Angle
  • Toe Out On Turns/Max Turn
  • Front and Rear Toe
  • Front/Rear/All/Zoom Readings
  • FrameCheck™ Light Truck Frame Angle
  • Initial/Final Color Printouts
  • Individual Camber/Caster/Toe
  • Front Caster (-28° to +28°)
  • Front & Rear Camber (-15° to +15°)
  • 3D Animation
  • Video Help
  • A-Arm Adjustments
  • Adjust Camber Only
  • Elevated Adjustments
  • Rear Shim Programs
  • Multiple Lift Support (3)
  • Vehicle Specs: 25+ years
  • EZ-Link™*
  • EZ-Toe™*
  • Equalize Toe Warning
  • Adjust Front Before Rear Warning
  • Ride Height*
  • Multiple Clamp Support
  • 2-Wheel Alignment
  • 32 Languages
  • Multiple Print Formats
  • Custom Vehicle Specifications
  • Regional Specifications
  • Integrated Help System (PDF)
  • Tools, Parts, and Adjustment Instructions
  • Advanced Customer Database with Backup/Restore
  • Multiple Units of Measure
  • Caster and SAI on Turntables
  • SAI Elevated
  • Live Caster, Camber and Toe - Turntables
  • Live Caster, Camber and Toe - Elevated
  • NorthStar Shim Program
  • Light Truck Bushing
  • Remote Control (Optional)
  • Variable-Height Camera Support Controls


Back To Features List | Back To Top | *Patented and/or Patent-Pending Features

Specifications

Wheel Size 12" - 24"
Tire Diameter Unlimited
Track Width 48" - 96"
Wheelbase 79" - 180"
Power Requirements 120/230V, 1Ph, 60HZ

Accessories

Standard Accessories

Part Number Description
00055502000 Steering Wheel Holder
00000096000 Brake Pedal Depressor
EAA0305J48B Camera Beam Assembly
EAK0268J52A Universal Wheel Clamps (13" - 24", Set of 4) and Shatter-proof Imaging Targets (2 Front and 2 Rear)

Recommended Accessories

Part Number Description
EAK0289J06A Premium Turntables
EAK0277J28A Paddle Kit for Premium Turntables
EAK0277J39A 4-Post Rollback Kit
EAK0277J40A 12K Scissor Rollback Kit
EAK0277J47A 12K Scissor Roll Forward/Rollback Kit
EAK0277J67A 10K/14K Scissor Rollback Kit
EAK0277J45A Hunter/Rotary Rollback Kit

Optional Accessories

Part Number Description
8-05320A Frame Angle Gauge
EAK0268J62A Universal Wheel Clamp Extension Kit (to 28")
EAK0268J63A Alloy Quick Clamp Kit
EAK0268J08A Remote Display Readout with 30’ Cable
EAK0289J35A Convex Mirror Kit
EAK0289J71A Universal Wheel Clamp Floor Stand

Optional Camera Support Configurations

Part Number Description

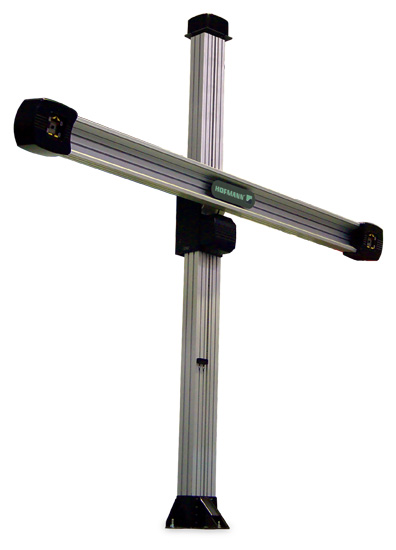

EAA0321J19C Variable-Height Camera Support

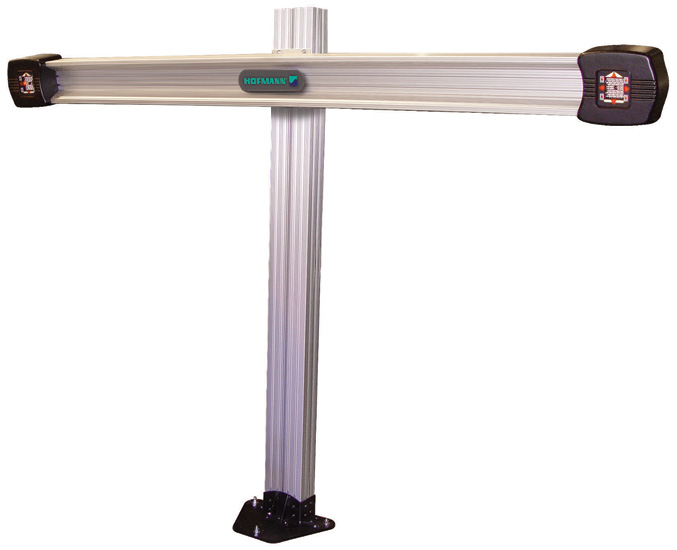

EAA0321J01A Fixed-Height Camera Support

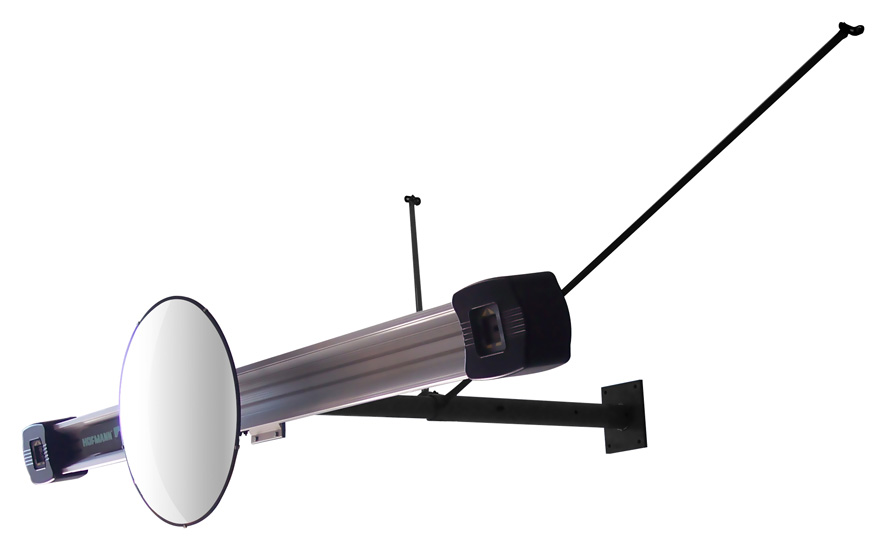

EAK0289J36A Wall/Pit Camera Support (Adjustable 36" - 60". Includes Convex Mirror)
EAK0289J63A Wall/Pit Camera Support (8")
EAK0289J64A Electronic-Tilt Camera System
