Model: EEWA721AL
Product Overview

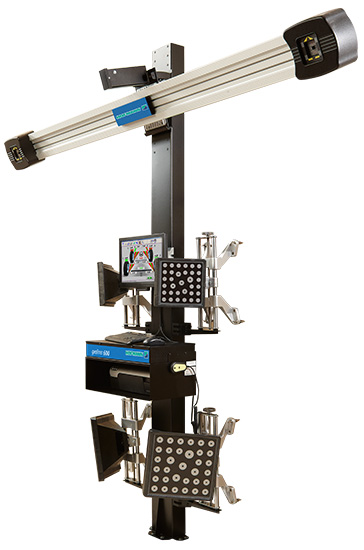

The geoliner 600 wheel alignment system is ergonomically designed to save valuable shop space while providing the latest in 3D camera technology. Our patented VODI Graphic Display is used with High-Definition (HD) cameras to provide visual and directional assistance to the technician during the alignment measuring procedure. The geoliner 600 will boost your shops productivity by allowing technicians to do more alignments is less time compared to conventional systems. (Shown with Optional Fixed-Height Camera Support Extended/Electronic-Tilt Camera System Kit)
Click on one of the section titles to learn more about the geoliner 600 Wheel Alignment System.
Hofmann Imaging Technology
Set-up To Readings In Under 2 Minutes
Imaging technology allows you to do more alignments in less time. The patented non-electronic shatter-proof wheel targets eliminate service calls for calibrations and wheel sensor maintenance.
Vehicle Orientation Directional Indicator (VODI)™*
Multi-Processor Cameras*
VODI™* Graphic Display - graphic overlay around each camera provides visual and directional assistance to the operator during the alignment measurements.
*Patented and/or Patent Pending Features
24" Universal Wheel Clamps

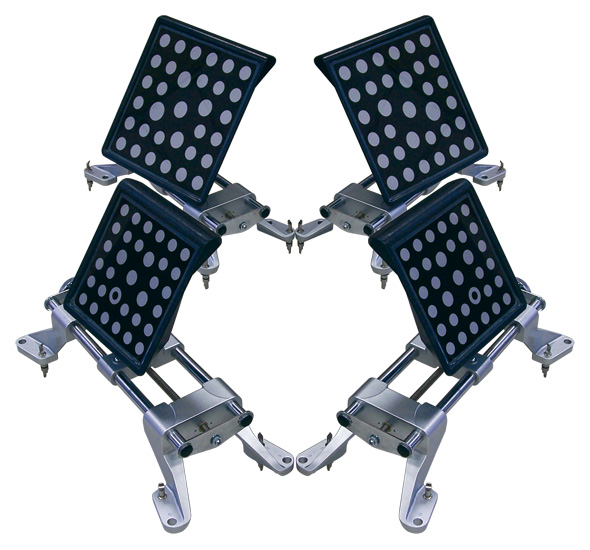

Universal Wheel Clamps with Shatterproof Targets
- Heavy-duty chrome rods and nickel-plated screw
- Thin profile tip fits most wheel/tire combinations
- Extended tip with thin profile allows clamping over plastic wheel covers
- Outside clamping for 15" to 24" wheels
- Inside clamping for 13" to 20" wheels
- Constructed from aluminum for light weight handling. Silver finish for durability and corrosion resistance
Optional Alloy Quick Clamp Kit
(EAK0268J63A) Allows accurate clamping without risk of scratching the wheel finish. Provides secure attachment to wheel while plastic sleeves placed over standard claws ensure proper placement and wheel protection.

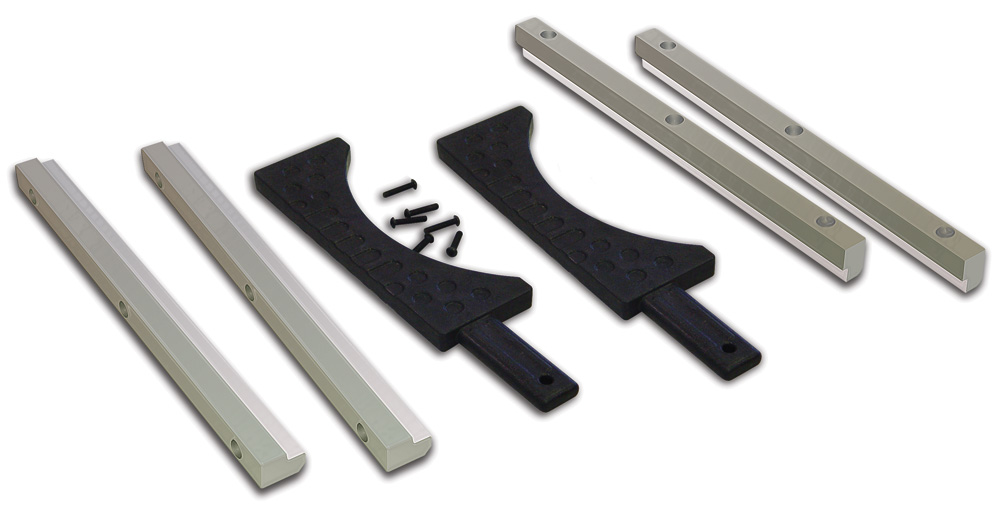

Optional Clamp Extensions
(EAK0268J62A) Increase maximum clamping diameter to 28 inches.
Features
|
Productivity Enhancing Features |
|
|
|
|
Measurements |
|
|
|
*Patented and/or Patent Pending Features
Animated Adjustment Aid
Technicians benefit from on-screen visual aids for vehicle-specific adjustments, including instructions, comments and necessary tools.
