geoliner™ 550

Portable Imaging Wheel Aligner

Product Overview

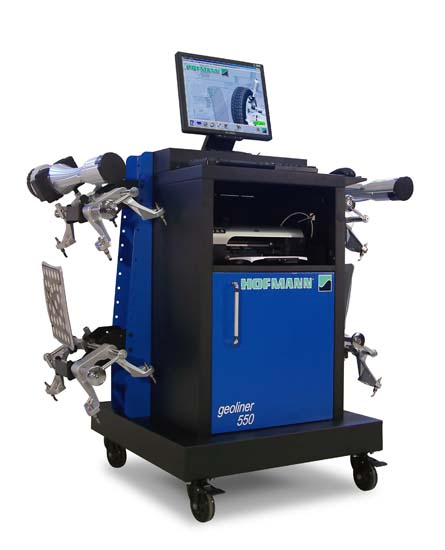

Hofmann geoliner 550

EEWA717AL

The geoliner 550 leverages a wireless communication system with Bluetooth™ technology, cordless pods powered by Lithium Ion batteries, and components made from lightweight magnesium. The geoliner 550 combines advanced technology and affordability to take your alignment business to the next level.

    Get Adobe Reader!

Click on one of the section titles to learn more about the geoliner 550 Wheel Alignment System.

Features



Step-By-Step Software

Step-By-Step Software

Advanced software guides the technician through the vehicle alignment process.

Back To Features List



Customer Database

Customer Database

Access and track customer service history.

Back To Features List



EZ-Toe* Software

EZ-Toe* Software

Reduces front toe adjustment time by up to 50%.

Back To Features List


Animated Adjustment Aid

Animated Adjustment Aid

Technicians benefit from on-screen visual aids for vehicle-specific adjustments, including instructions, comments and necessary tools.

Back To Features List

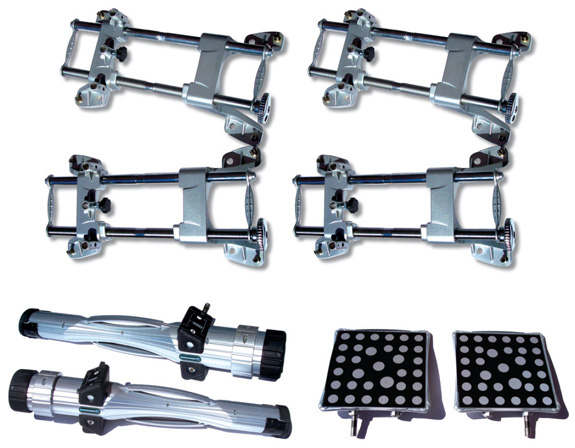

Solid Construction

Solid Construction

Heavy-duty magnesium pods, imaging targets and wheel clamps reduce potential damage.

Back To Features List


Lithium Ion Rechargeable Power Packs

Lithium Ion Rechargeable Power Packs

Increased power reduces the need to recharge daily. Charge level indicators show remaining power available.

Back To Features List


Features
  • SAI and Thrust Angle
  • Toe Out On Turns/Max Turn
  • Front and Rear Toe
  • Front/Rear/All/Zoom Readings
  • FrameCheck™ Light Truck Frame Angle
  • Initial/Final Color Printouts
  • Front Caster (-28° to +28°)
  • Front & Rear Camber (-15° to +15°)
  • 3D Animation
  • Video Help
  • A-Arm Adjustments
  • Adjust Camber Only
  • Elevated Adjustments
  • Rear Shim Programs
  • Multiple Lift Support (3)
  • Vehicle Specs: 25+ years
  • EZ-Link*
  • EZ-Toe*
  • Equalize Toe Warning
  • Adjust Front Before Rear Warning
  • Ride Height*
  • Multiple Clamp Support
  • 2-Wheel Alignment
  • 32 Languages
  • Multiple Print Formats
  • Custom Vehicle Specifications
  • Regional Specifications
  • Integrated Help System (PDF)
  • Tools, Parts, and Adjustment Instructions
  • Advanced Customer Database with Backup/Restore
  • Multiple Units of Measure
  • Caster and SAI on Turntables
  • SAI Elevated
  • Live Caster, Camber and Toe - Turntables
  • Live Caster, Camber and Toe - Elevated
  • NorthStar Shim Program
  • Light Truck Bushing
  • Camber & Toe - Turntables (Frozen Caster)
  • Camber & Toe - Elevated (Frozen Caster)

Back To Features List | Back To Top | *Patented and/or Patent-Pending Features

Specifications

Wheel Size 13" - 24"
Tire Diameter Up to 37"
Track Width 48" - 96"
Wheelbase 70" - 180"
Power Requirements 120/230V, 1Ph, 60HZ

Accessories

Standard Accessories

Part Number Description

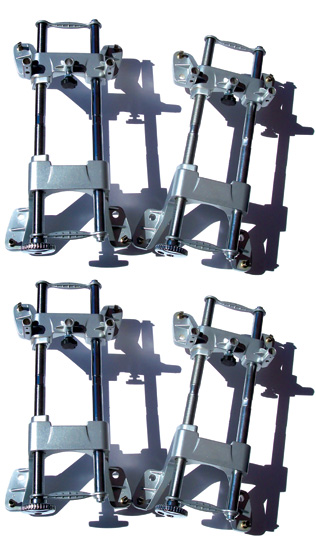

EAK0289J10A X-Light™ Wheel Clamps (Set of 4)

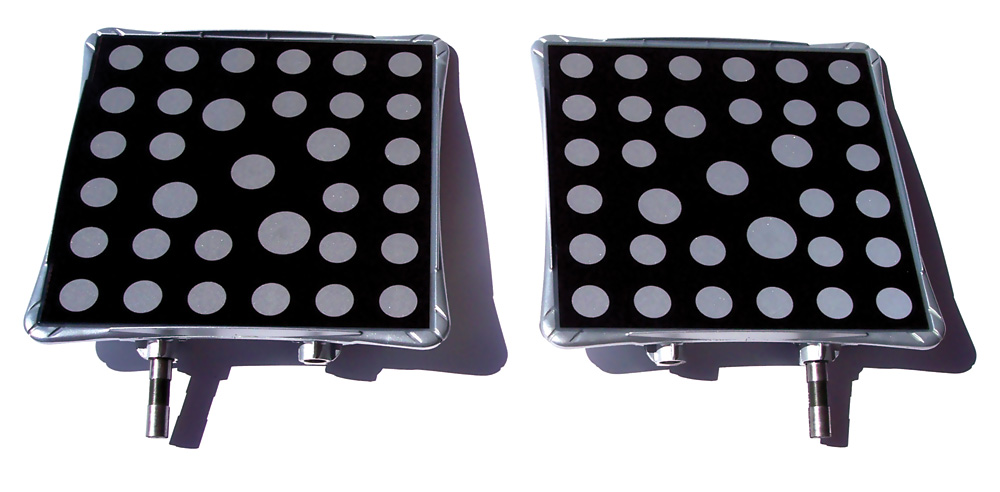

EAK0289J12A Front Left and Right Shatter-Proof Imaging Targets

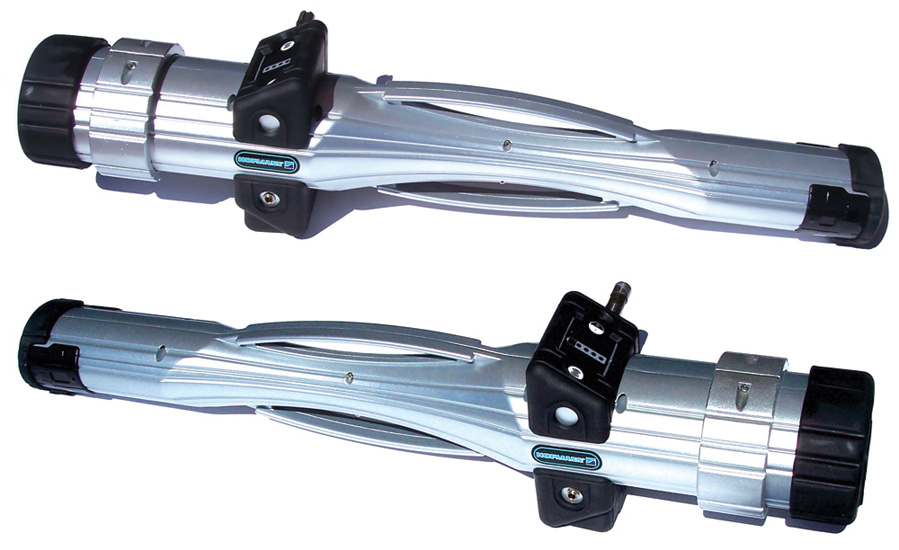

EAK0289J44A Rear Left and Right Pods

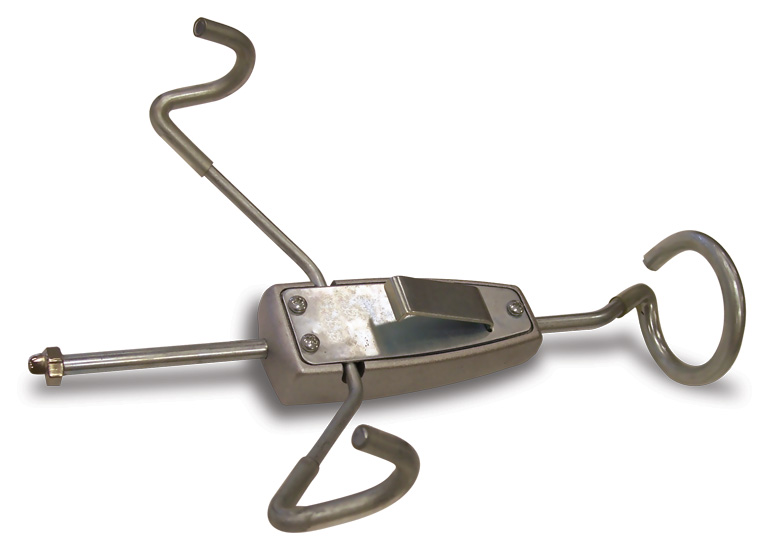

00055502000 Steering Wheel Holder
00000096000 Brake Pedal Depressor

Recommended Accessories

Part Number Description
EAK0289J06A Premium Turntables

Optional Accessories

Part Number Description

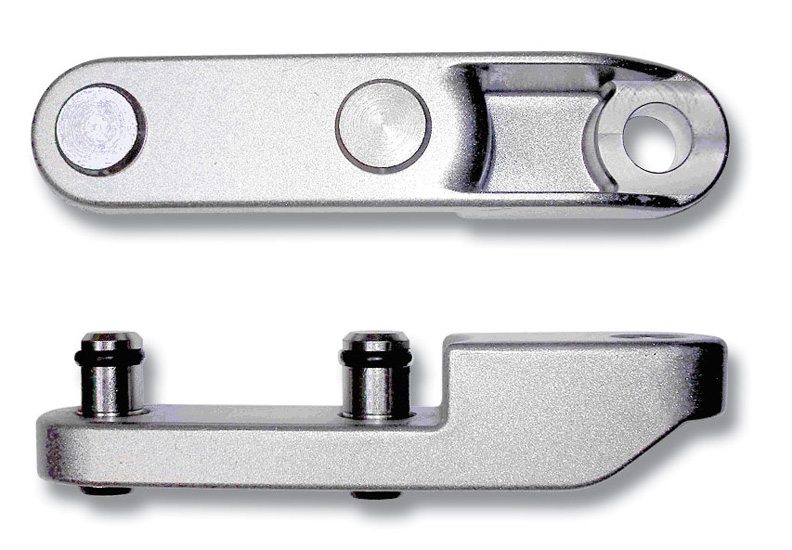

EAK0268J62A Universal Wheel Clamp Extension Kit (to 28")

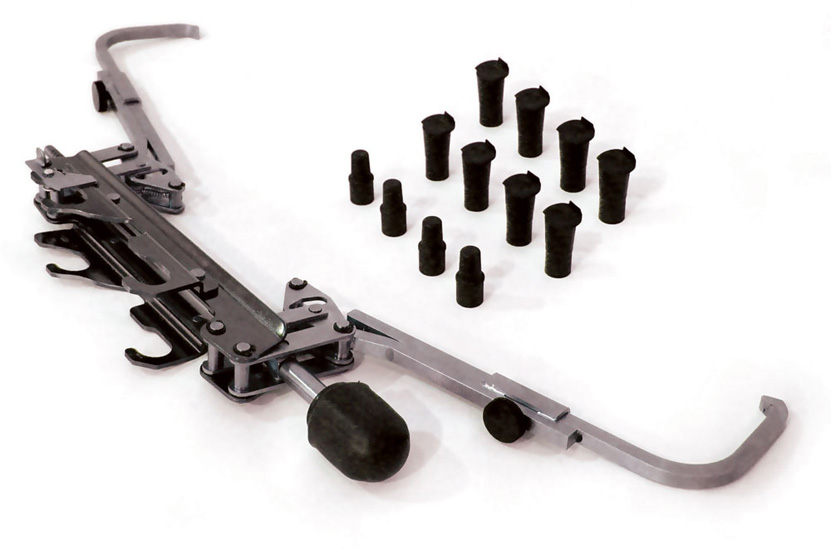

EAK0268J63A Alloy Quick Clamp Kit

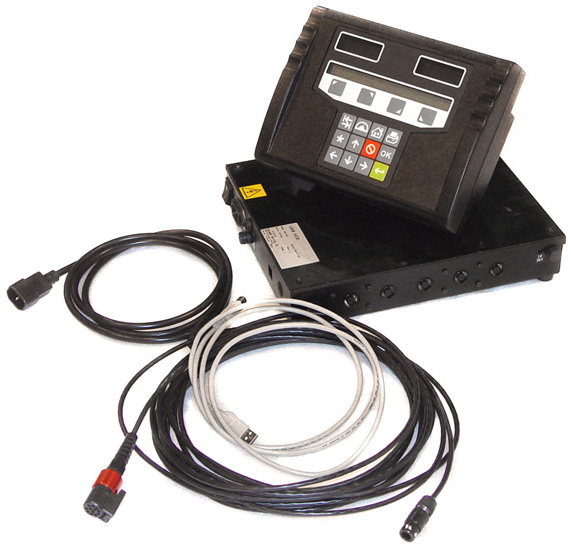

EAK0268J08A Remote Display Readout with 30’ Cable
P-1826 Convex Mirror 36" Wide with Hardware
