Product Overview
M4400220

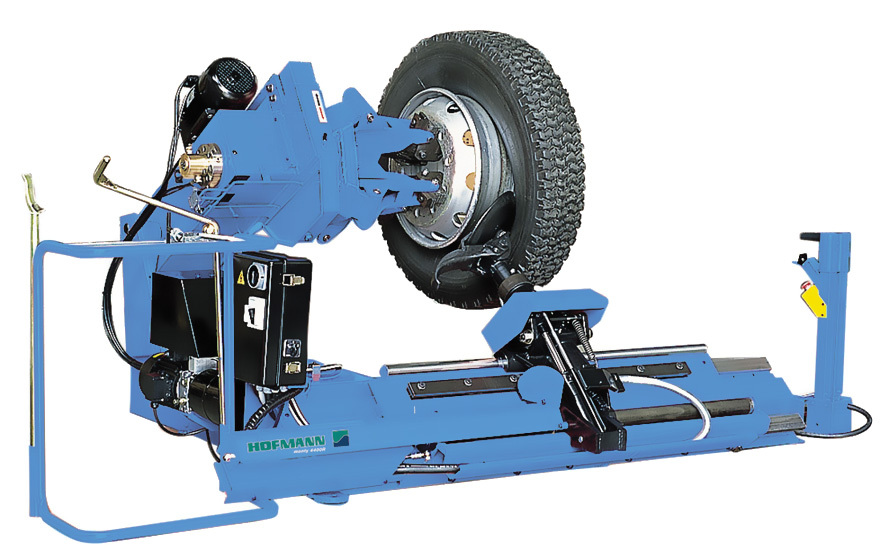

The Hofmann monty 4400 heavy-duty tire changer is designed for truck, bus, large fleet services and many off-road applications. Make wheel service for trucks, tractors, off-road and skidder wheels a faster, easier and more profitable part of your business with Hofmann’s monty 4400/4400r. These heavy-duty tire changers are designed to mount/demount tires up to 90" in diameter. The monty 4400/4400r has one-operator capability that allows one person to safely monitor all tire-changing operations. The monty 4400/4400r also includes a comprehensive training video showing the actual mounting and demounting techniques for on and off-road wheels.
Click on one of the section titles to learn more about monty 4400 Truck Tire Changers.
Features
Four-Jaw Clamping Chuck
These self-centering hydraulically-operated clamping jaws can clamp from 14" - 44" either from the inside of the wheel or the wheel’s center bore. Optional jaw extensions increase clamping range to 56".
One-Man Operation
The remote control console allows one person to safely monitor all tire changing operations.
Patented Mount/Demount Head Assembly
The bead breaker disc and mount/demount heads are combined into one assembly for ease-of-use. This mount/demount head is manually operated on the monty 4400, and is hydraulically controlled via the remote control console on the monty 4400r.
Versatility
The 3 HP two-speed bi-directional chuck motor and heavy-duty hydraulics allow the monty 4400 to handle the toughest tubeless, tube type, single or multi-piece, Budd, and Dayton wheels.
Available Configurations
| Part Number | Description |
|---|---|
| M4400220 | monty 4400 |
| M4400R220CSA | monty 4400 |
Specifications
| Overall Wheel Clamping Diameter | 14" - 44" |
|---|---|
| Maximum Wheel Width | 43" |
| Maximum Outer Tire Diameter | 90.5" |
| Hydraulic Motor | 2 HP |
| Chuck Motor | 3 HP |
| Chuck Spindle Diameter | 5" |
| Rotational Torque | 2,268 ft. lbs. |
| Work Area Dimensions (DxWxH) | 117"x81"x63" |
| Shipping Weight | 2,085 lbs. |
| Power Requirements | 230V, 3Ph, 60HZ |
Accessories
Standard Accessories
| Part Number | Description |
|---|---|
| EAA0247G02A | Tire Lever |
| ST4004461 | Large Bead Lifting Lever |
| ST4002354 | Bead Mounting Lever |
| ST4014914 | Alloy Jaw Protectors |
| EAA0329G10A | Wheel Clamp Pliers |
Optional Accessories
| Part Number | Description |
|---|---|
| ST4019161 | Jaw Extensions (Increase clamping range up to 56") |
| ST4022287 | Bead Roller |
| ST4021852 | Alloy Wheel Clamp |
| 4008257 | Protective Alloy Jaws |
| RTT75N | Premium Tire Paste |
