Product Overview
M3650230

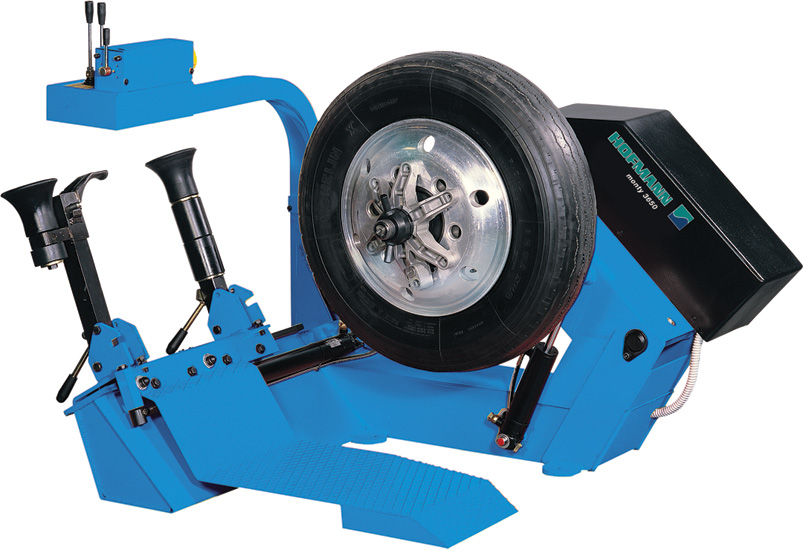

The Hofmann monty 3650 heavy-duty tire changer is designed to change on-road, RV and bus tires. It is ideal for businesses that maintain a fleet of vehicles, freight forwarders and bus garages. The monty 3650 can handle wheel diameters from 16" to 24.5", wheel widths of 20" and a maximum tire diameter of 47".
Click on one of the section titles to learn more about the monty 3650 Truck Tire Changer.
Features
Simple & Quick Operation
After mounting the wheel onto the rotating chuck, both beads are quickly broken using the bead rollers. The tire is then removed using the same bead rollers. Installation is just as quick and easy.
One-Man Operation
The integrated control panel conveniently moves into any position allowing one person to operate the tire changer.
Minimum Space Requirement
The monty 3560 uses less shop space than competitive tire changers in its class.
Affordably Priced For Fleets
Even with a fleet as small as 20 vehicles, the monty 3650 will pay for itself in the first year.
Specifications
| Overall Wheel Clamping Diameter | 16" - 24.5" |
|---|---|
| Maximum Wheel Width | 20" |
| Maximum Outer Tire Diameter | 47" |
| Maximum Wheel Weight | 450 lbs. |
| Work Area Dimensions (DxWxH) | 54"x52"x31" |
| Shipping Weight | 880 lbs. |
| Power Requirements | 230V, 3Ph, 60HZ |
Accessories
Standard Accessories
| Part Number | Description |
|---|---|
| EAA0247G02A | Tire Lever |
| 4021053 | Wing-Nut |
| ST4021100 | Star Adapter for 22.5" - 24.5" Wheels |
| ST4021101 | Flange (Use with Star Adapter ST4021100) |
| EAA0329G10A | Wheel Clamp Pliers |
Optional Accessories
| Part Number | Description |
|---|---|
| ST4004461 | Large Bead Lifting Lever |
| ST4020798 | Star Adapter for 19.5" Wheels |
| ST4021247 | Truck Cone Kit (135mm - 164mm) |
| ST0023506 | Centering Cone (176mm) |
| ST4023775 | Centering Cone (202mm) |
| RTT75N | Premium Tire Paste |
