monty™ 2700

Tire Changers

Product Overview

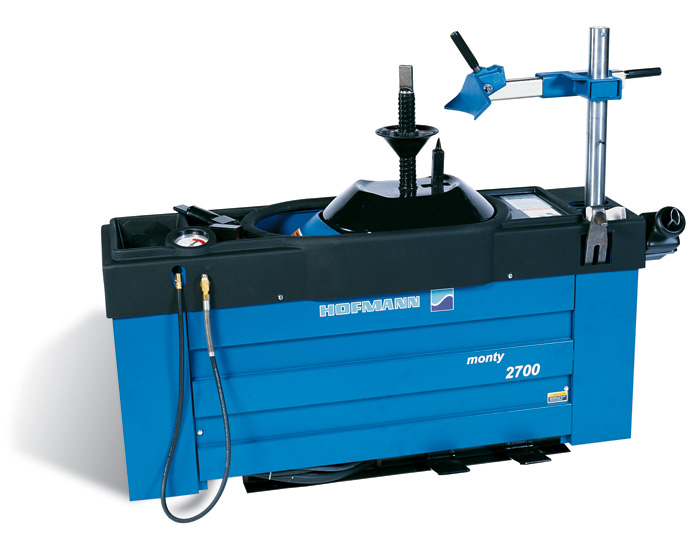

monty 2700 Center-Post Tire Changer

MONTY2700

The Hofmann monty 2700 center-post tire changer leverages a dual-power stroke that has the speed and durability required for high-volume shops. It can handle wheel diameters up to 18", wheel widths up to 20" and an overall tire diameter of 40". Shops also get enhanced productivity with a fast cycle time due to the monty 2700’s bi-directional combination tire tool. This feature allows the operators to mount/demount a tire with one cycle of the machine.

Get Adobe Reader!

Click on one of the section titles to learn more about the monty 2700 Center-Post Tire Changer.

Features



Dual-Power Cylinders

Two large air-over-oil cylinders provide maximum power and allows the operator complete control over mounting and demounting.

Back To Features List


Fastest Cycle Time

With the bi-directional combination tire tool, you can completely demount or mount a tire in one cycle.

Back To Features List


Rebuildable Air Cylinders

Air cylinders can easily be rebuilt to extend the life of the machine for years longer than competitive models.

Back To Features List


Unique Bead Breaking System

Lower bead breaker has a built-in adjustment to match most wheel contours. Both beads are broken simultaneously.

Back To Features List


Reliable

Proven design used for years in many of the highest volume tire shops.


Back To Features List | Back To Top

Specifications

Wheel Diameter 18"
Maximum Wheel Width 20"
Maximum Outer Tire Diameter 40"
Center Post Torque 650 ft. lbs. @ 175 PSI
Cylinders Two 7" (diameter) x 6.5" (stroke)
Cycle Time 6 seconds (Complete forward and reverse stroke)
Surge Tank 5.6 gallon (ASME approved)
Work Area Dimensions (DxWxH) 44"x22"x54.5"
Air Requirements 120 to 180 PSI @ 5 CFM
Shipping Weight 500 lbs.
Power Requirements 120V, 1Ph, 60HZ

Accessories

Standard Accessories

Part Number Description
00066008000 Center Shaft Extension

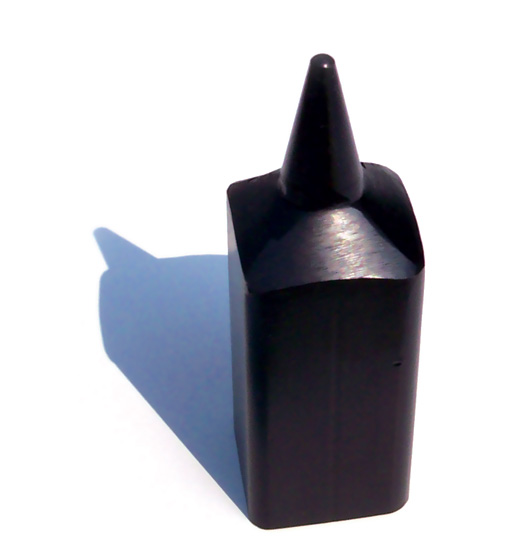

00066009000 Centering Pin Extension
00066181000 Nylon Protective Dismounting Boot
00066182000 Centering Pin Extension
00066006000 Lube Bottle
81556 Lube Applicator

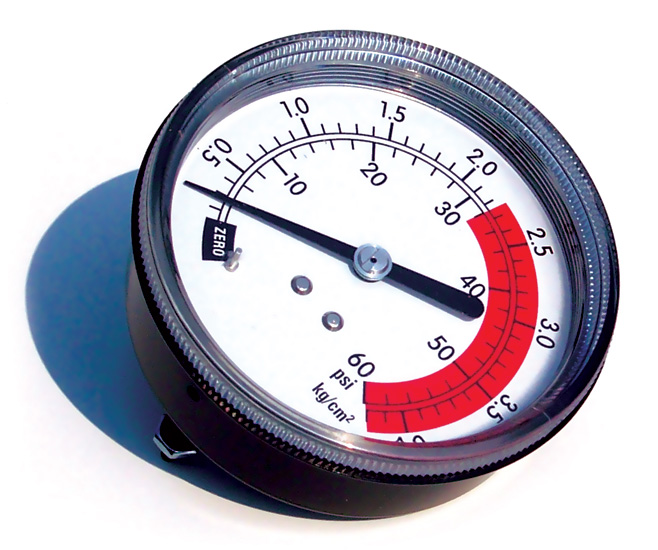

00066170000 Air Gauge
00067715000 Inflation Hose with Chuck
00066679000 Mounting Tool

Optional Accessories

Part Number Description
RTT75N Premium Tire Paste
