Product Overview

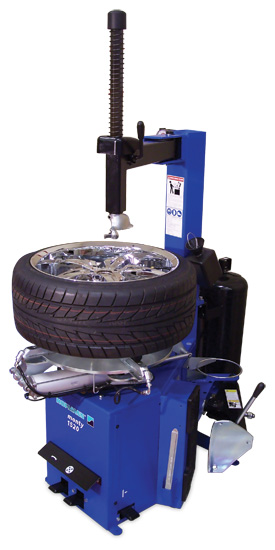

M1520110
The Hofmann monty 1520 is an entry-level tire changer designed for single-bay repair shops and quick-lubes. The monty 1520 swing-arm tire changer features 18" outside wheel clamping standard (22" outside wheel clamping with optional adapters), allows for an outer tire diameter of up to 40" and a wheel width capacity of 13". It features dual clamping cylinders that assure proper clamping power at all four jaws.
Click on one of the section titles to learn more about the monty 1520 Tire Changer.
Features
Dual Wheel Clamping Cylinders
Dual pneumatic clamping cylinders control all four clamping jaws, eliminating damage to wheels due to slippage.
Four-Jaw Clamping Chuck
Self-centering and clamps wheels with either 20" inner or 18" outer diameter (22" using optional jaw extensions).
Powerful Two-Position Bead Breaker
6,000 lbs. of power at the bead shovel and a range of 13" wide, the monty 1520 can handle the toughest tires!
Powerful Tire Inflation System
Powerful air blast operated by the foot pedal. Each moveable jaw is precisely set to the exact position under the wheel to seal the tire bead.
Upgrade with Optional EasyMont Pro!
EasyMont Pro features a three-piece design with a Top Roller, Pressing Foot, and Lifting Disc. Each piece provides a specialized function that assists a single operator in mounting/demounting low-profile and high-performance tires.
- Assists operator with bead lubrication, wheel clamping, lower bead lifting, re-loosens beads, and allows easy one-operator mounting of the stiff upper bead.
- EAA0329G35B (Optional).
- Top Roller:
- Demounting - Presses down on the tire sidewall, provides clearance for easy positioning of the mount/demount head, upper bead lubrication, and easy insertion of the demount tire lever.
- Mounting - The roller retains the bead under the nose of the mounting head. Works in conjunction with the Pressing Foot to keep the tire bead below the wheel drop center as the tire rotates 360° during the mounting process.
- Pressing Foot:
- Tire Clamping - Presses the wheel in the center hole which allows the lower bead to clear the wheel’s rim for easy clamping.
- Tire Mounting - Presses the upper tire sidewall into the drop center and holds it in place during the 360° rotation required for mounting the upper bead is complete. Allows one-technician operation for mounting stiff sidewall, run-flat and high-performance tires.
- Lifting Disc: Loosens lower beads that often re-seat. To remove the upper bead, the lower bead must be free to move vertically during demounting. Provides an "extra hand" to lift and hold wide tires to facilitate insertion of the demount lever to remove the lower bead.
- For better cosmetic protection of expensive tires and wheels, an optional adjustable bead breaking disc can be fitted to the EasyMont Pro. This disc allows for breaking the tire beads using 360° tire rotation while the disc gently presses the tire bead dynamically, thus preserving tire and wheel.
Specifications
| Overall Wheel Clamping Diameter | 10" - 20" |
|---|---|
| Inner-Wheel Clamping Diameter | 12" - 20" |
| Outer-Wheel Clamping Diameter | 10" - 18" |
| Bead Breaker Range | 2" - 13" |
| Bead Loosening Power | 6,000 lbs. |
| Maximum Wheel Width | 13" |
| Maximum Outer Tire Diameter | 40" |
| Work Area Dimensions (DxWxH) | 72"x68"x85" |
| Air Requirements | 100 to 175 PSI @ 5 CFM |
| Shipping Weight | 480 lbs. |
| Power Requirements | 120V, 1Ph, 60HZ |
Drive Motor/Air Supply Options
| Electric (standard) | 1 HP |
|---|
Accessories
Optional Accessories
| Part Number | Description |
|---|---|
| EAA0329G35B | EasyMont Pro Pneumatic Bead Assist |
| ST4029446 | Automotive Adapters - Extends outer clamping range to 22" |

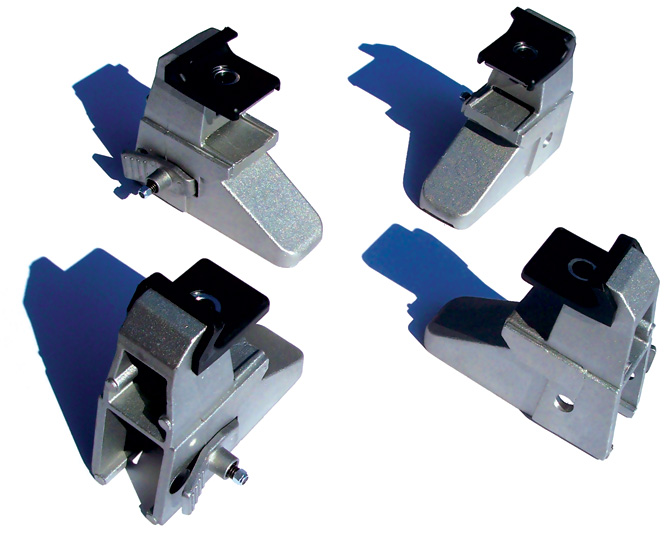

| ST4028566 | Motorcycle Adapters (Outer wheel clamping diameter: 12" - 21") |
| EAA0332G84A | ATV Adapters (Outer wheel clamping diameter: 7" - 14") |
| 4028228 | Quick Change Bead Head Kit |
| EAA0247G20A | Composite Mount/Demount Head |
| EAA0247G04A | Protective Cover (For tire lever EAA0247G02A, included with all Hofmann Tire Changers) |

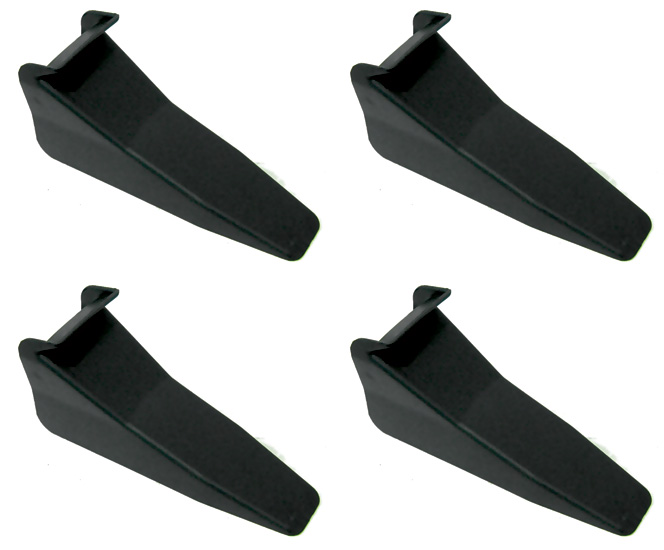

| EAA0304G20A | Outside Clamping Jaw Protectors (Set of 4) |
| ST0022129 | Snap-in Jaw Protector |
| EAA0304G15A | Protective Cover for Bead Breaker Shovel |
| ST4026853 | Rim Protector, snaps on to rim of wheel (3 each. Use with Wave Tire Tool EAA0304G14A) |
| EAA0247G15A | Protective Insert for Mount/Demount Head (10 each) |
| ST0024335 | Replacement Composite Head |
| EAA0304G14A | Wave Tire Tool |
| ST4028648 | Magic Bead Pusher (Use with EasyMont Pro Pneumatic Bead Assist Device EAA0329G35B) |
| EAA0332G32A | Round Bar with Roller Attachment (35 mm. Use with EasyMonty Pneumatic Bead Assist Device EAA0329G35B) |
| EAA0329G92A | Hex Bar with Roller Attachment |
| EAA0304G43A | Bead Breaker Disc (Use with Hex Bar EAA0329G92A) |
| EAA0247G70A | Bead Clamp for performance wheels |
| EAA0247G11A | Bead Clamp for run-flat tires |
| RTT75N | Premium Tire Paste |
