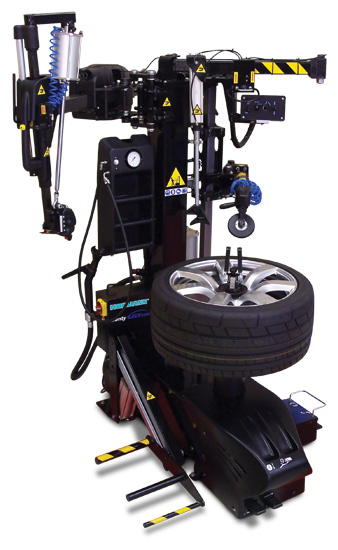

Hofmann monty Universal 2 Lever-Less Tire Changer

Model: EEWH735A

Product Overview

The innovative minds at Hofmann have designed a "lever-less" tire changer to meet the ever changing demands of tire shops, automotive garages, car dealerships and specialty shops. The Hofmann monty Universal 2 provides precision movement of the specially designed laser-guided demount tool. Additional standard labor-saving features included on the monty Universal 2 are: "Zip-Lock" center clamping of the wheel, integrated wheel lift, dualposition disc-style bead breaker, pneumatic bead assist, two-speed drive system and top-side bead inflation.


  Get Adobe Reader!

Click on one of the section titles to learn more about the monty Universal 2 Tire Changer.

Features

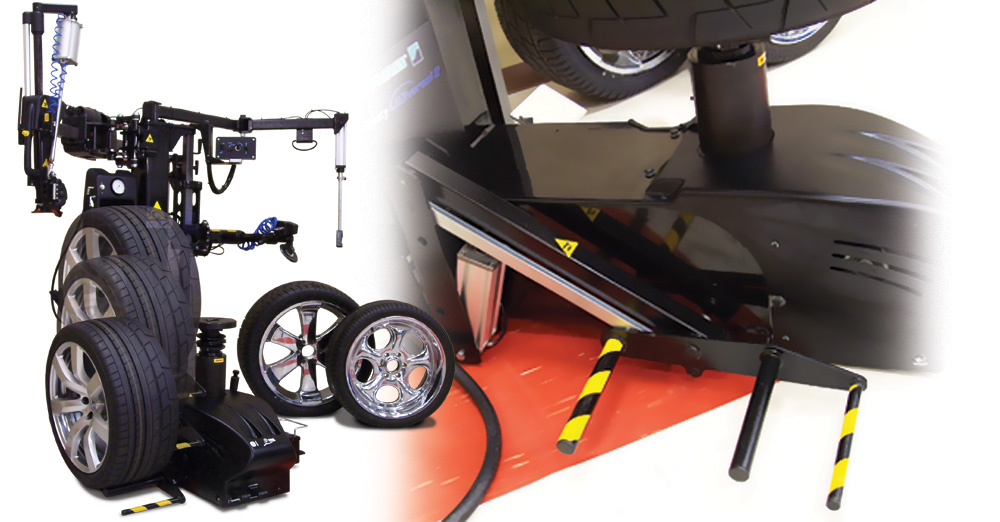

Wheel Lift

monty Universal 2 wheel lift
  • Designed to assist technician and reduce fatigue.
  • Reduces the chance of damaging expensive wheels.

Back To Features List

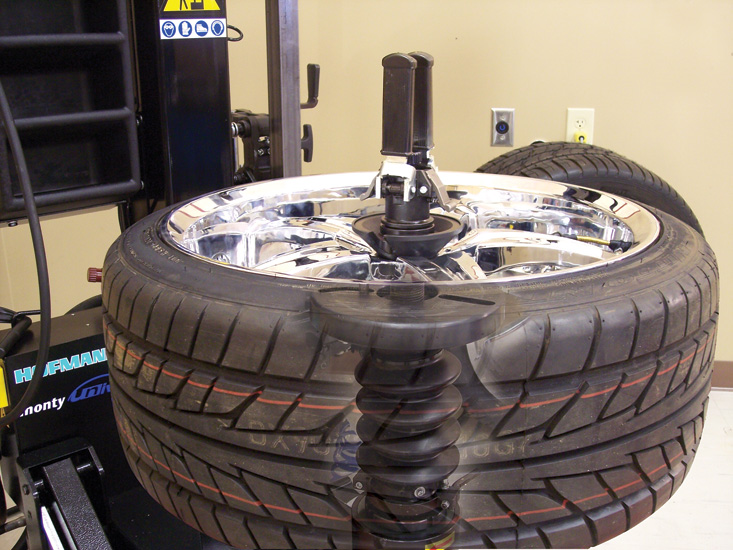

"Zip-Lock" Center Clamping

Patented wheel clamping system Protective table and centering cones Adjustable working height
  • Patented wheel clamping system is fast and easy.

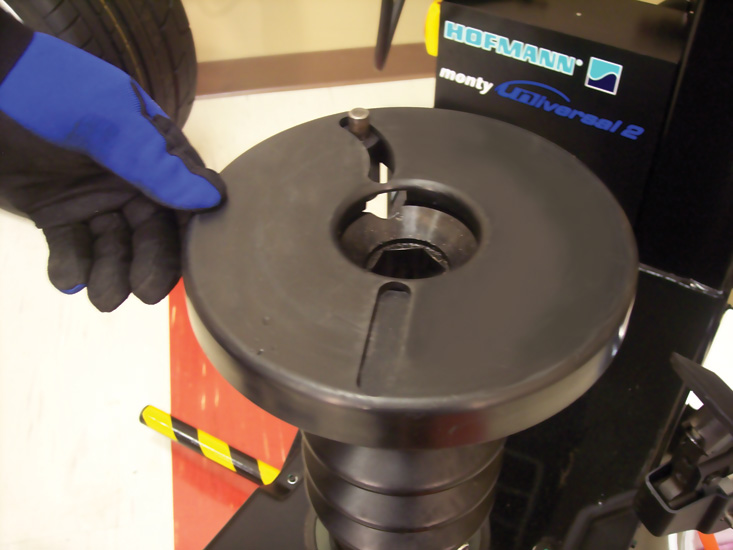

  • Protective table and centering cones reduce the chance of wheel damage.

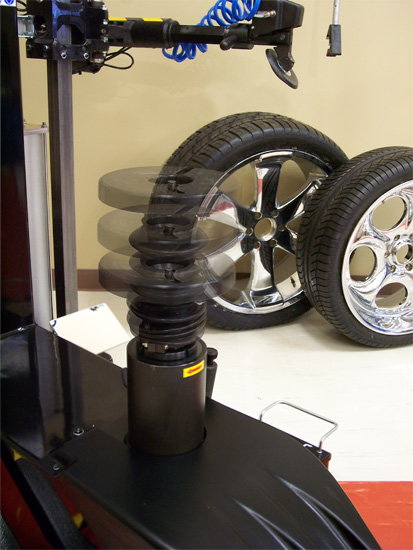

  • Adjustable working height is perfect for any size tire or technician.

Back To Features List

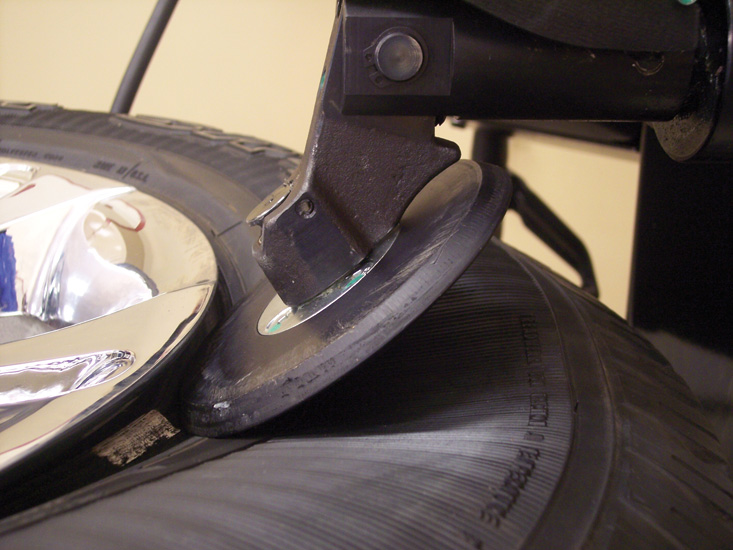

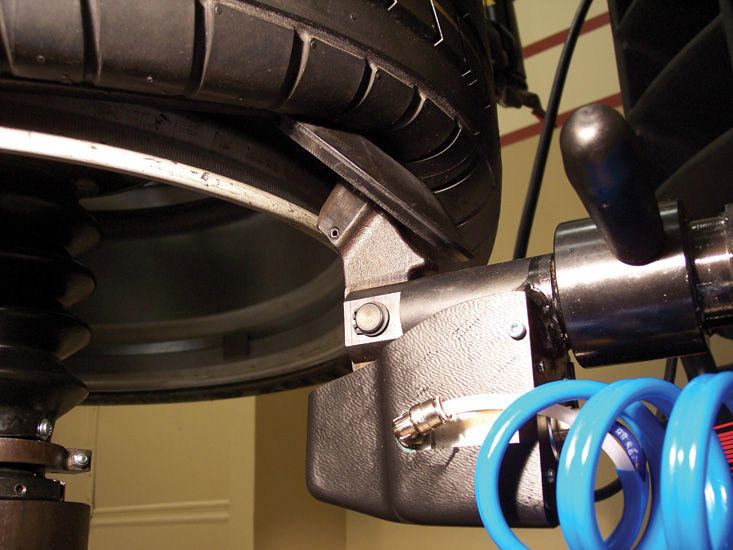

Dual-Position Disc Bead Breaker

Operator control panel Polymer disc Locking position

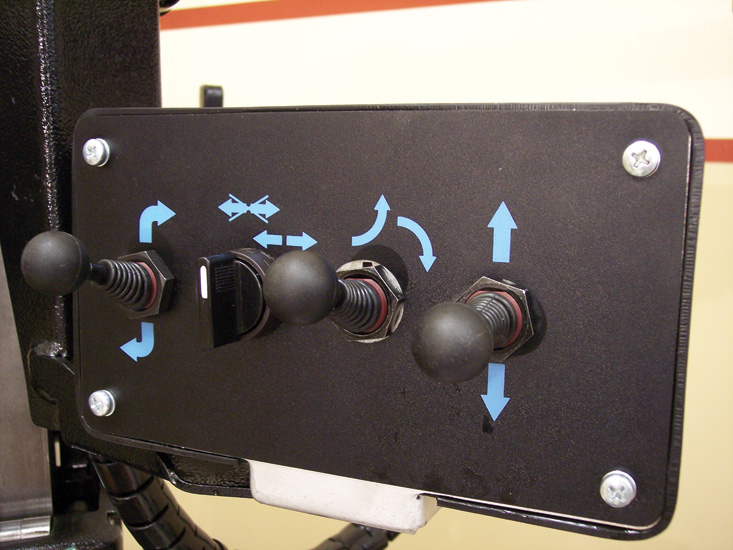

Operator control panel. Polymer disc won’t damage wheels or tire sensors. Locking disc position is quick and accurate on both sides of the tire.

Back To Features List

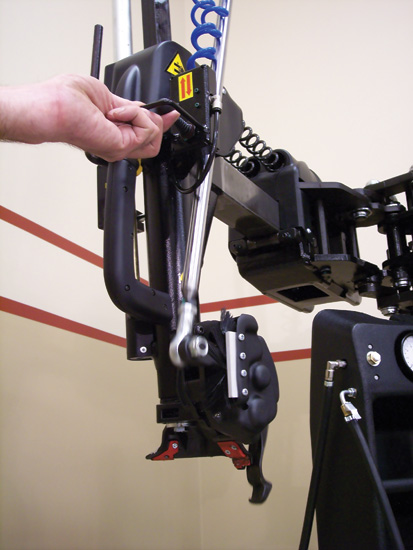

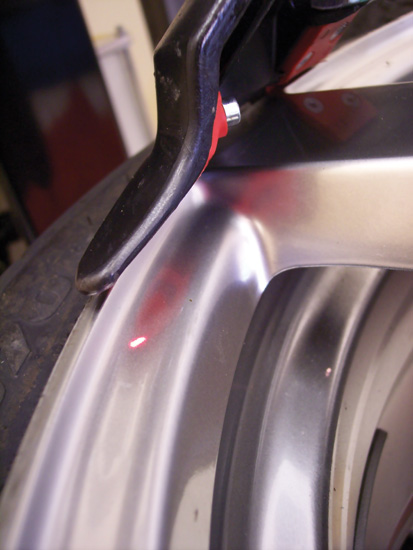

Laser-Guided Demount Tool

Laser-Guided Demount Tool
  • Foot pedal control swings demount tool into position.
  • Laser guides technician to ensure proper position of demount tool.
  • Simple control inserts the demount tool between the wheel flange and tire.

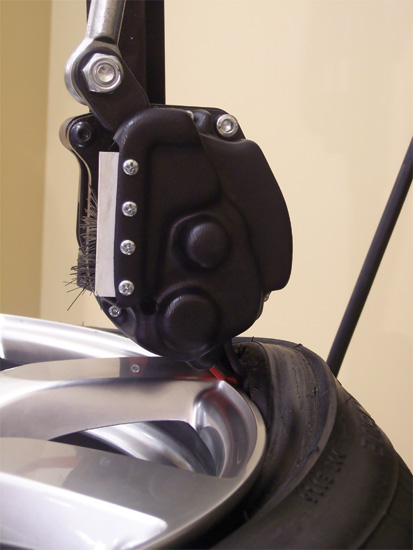

  • Bead is lifted over the wheel flange effortlessly.

Back To Features List

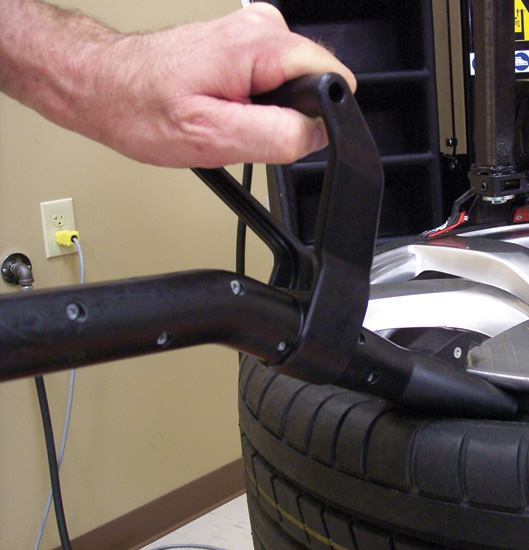

Pneumatic Bead Assist

Pneumatic Bead Assist

  • Maintains top bead in drop-center on difficult performance wheels.
  • Reduces the chance of top bead damage.
  • Allows one technician to change any wheel.

Back To Features List

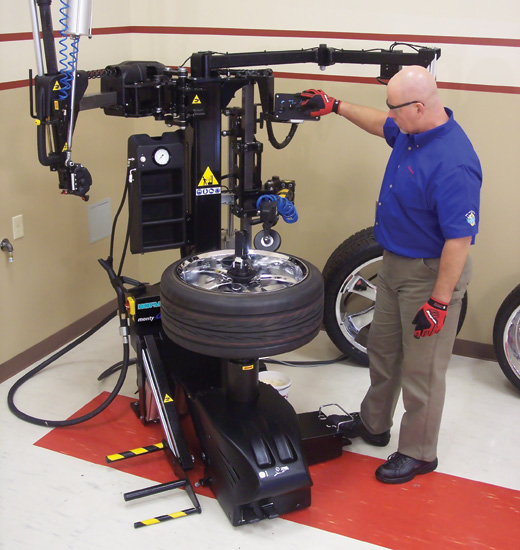

Two-Speed Drive System

Two-Speed Drive System

  • Foot pedal motor control system delivers the right torque and speed.
  • Two speeds: Low speed with high torque, and fast speed with less torque.

Back To Features List




Top-Side Bead Inflation

Top-Side Bead Inflation

  • No need to demount wheel from tire changer.
  • Inflates difficult wheels quickly and easily.



Back To Features List | Back to Top

Specifications


Wheel Diameter Range: 12" - 30"
Maximum Tire Diameter: 47"
Maximum Wheel Width: 17"
Maximum Wheel Weight: 154 lbs.
Work Area Dimensions (D x W x H): 69" x 67" x 81"
Shipping Weight: 770 lbs.
Air Requirements: 100 to 170 psi
Power Requirements: 120V, 1Ph, 60Hz

Accessories


Standard Accessories

Part Number Description

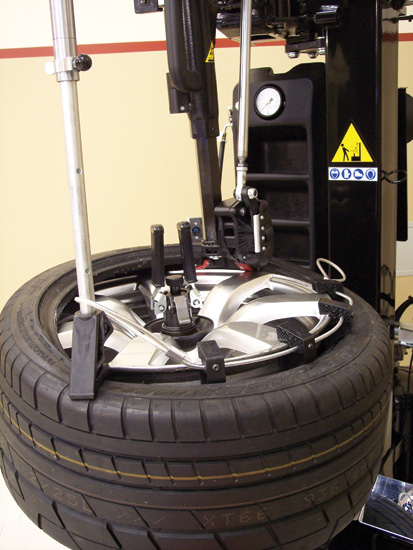

ST4028648 Magic Bead Pusher
ST4026853 Rim protector, snaps onto rim of wheel

Optional Accessories

Part Number Description

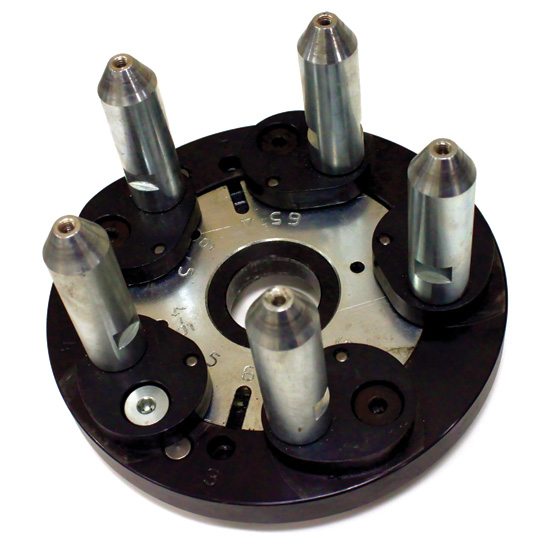

EAA0358G58A Reverse-Mounted Wheel Kit

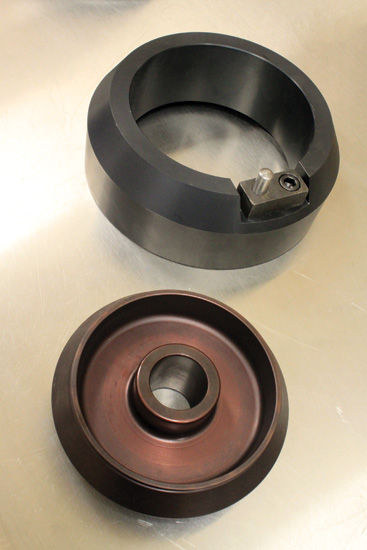

EAA0349G06A Light-Truck Wheel Kit
