Product Overview
EEWH737A1

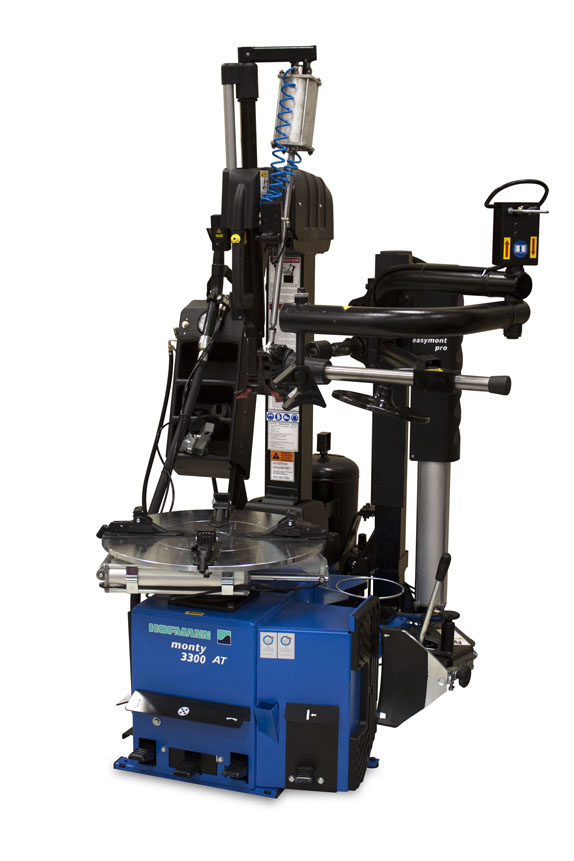

Hofmann’s monty 3300 AT Plus lever-less high-performance tire changer is designed for high-volume tire shops, multi-bay repair shops and car dealerships. Technicians can effortlessly and safely change standard tires of the most difficult performance tires on cars, SUV's, and light trucks. The monty 3300 AT Plus features a powerful, multi-position bead breaker that delivers 3,000 lbs. of power at the bead shovel, making easy jobs of both the stiffest and softest sidewalls.
Click on one of the section titles to learn more about monty 3300 Tilt-Tower Tire Changers.
Features
Laser Guided Lever-less Tool Head
The monty 3300 AT Plus features a unique bead lifting tool which inserts between the tire and wheel in a simple motion. Exclusive laser-indexing acts as a visual guide when indexing the demount head to the wheel's edge quickly and easily, elminating wheel contact.
Dual Wheel Clamping Cylinders
Dual pneumatic clamping cylinders control all four clamping jaws, eliminating damage to wheels due to slippage.
Multi-Position Bead Breaker
3,000 lbs. of power at the bead shovel and a range of 16" wide. The two-stage pneumatic cylinder provides precise power and can be toggled with the foot pedal as needed. Both the stiffest and the softest sidewalls are a snap. No damage to the tires while loosening the beads!
Built To Last
Heavy, solid ½" thick steel clamping table. Rugged steel-reinforced chasis. Rust-proof air cylinders and valves. Compressed air lubricator and regulator on-board - keeps valves and cylinders maintenance-free!
Available Configurations
| Part Number | Description |
|---|---|
| EEWH737A1 | monty 3300 AT Plus |
Specifications
| Overall Wheel Clamping Diameter | 10" - 24" |
|---|---|
| Inner-Wheel Clamping Diameter | 12" - 24" |
| Outer-Wheel Clamping Diameter | 10" - 24" |
| Bead Breaker Range | 3" - 16" |
| Bead Loosening Power | 3,000 lbs. |
| Maximum Wheel Width | 15" |
| Maximum Outer Tire Diameter | 40" |
| Shipping Weight | 875 lbs. |
| Power Requirements | 120V, 1Ph, 60HZ |
Drive Motor/Air Supply Options
| Electric (standard) | 1 HP |
|---|
Accessories
Standard Accessories
| Part Number | Description |
|---|---|
| ST4027645 | Outside Clamping Jaw Protectors (Set of 4) |
| EAA0304G15A | Protective Cover for Bead Breaker Shovel |
| EAA0247G15A | Protective Insert for Mount/Demount Head (10 each) |
| ST4028648 | Magic Bead Pusher (Use with EasyMont Pro Pneumatic Bead Assist Device EAA0329G35B) |
| EAA0329G92A | Hex Bar with Roller Attachment |
| EAA0304G43A | Bead Breaker Disc (Use with Hex Bar EAA0329G92A) |
| ST0029455 | Protective Slide Cover |
