Product Overview
SOET9000
The Hofmann 9K variolift Double-Scissor General-Purpose lift is designed to accommodate a wide range of vehicles. It’s low-profile design allows for easy drive-over or it can be installed as a flush-mount. The 9K variolift is open front to rear for maximum accessibility.
Click on one of the section titles to learn more about the 9K variolift™ Double-Scissor Automotive/General-Purpose Lift.
Features

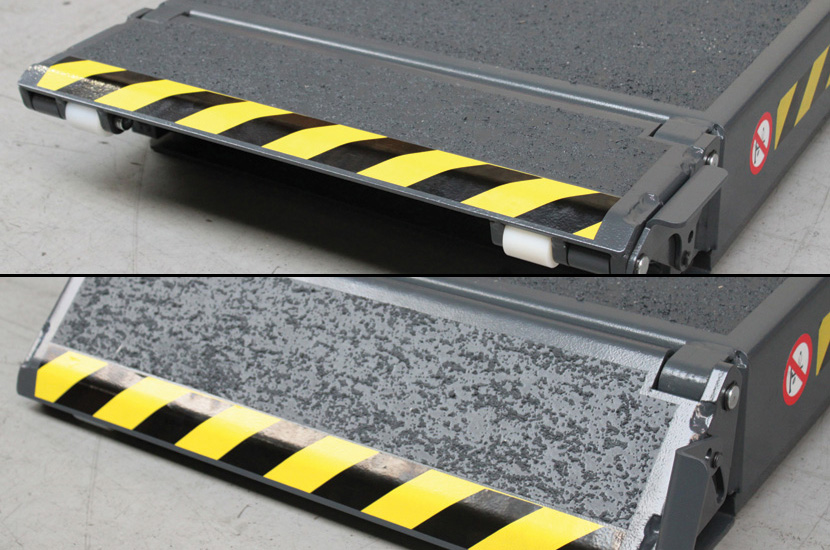

Approach ramps can be raised and used to extend the surface length of the lifting pads.
- Lifts straight up - 5.3" low to 79.75" high.
- Open front and rear with no crossmember for maximum accessibility.
- Dual hydraulic synchronization.
- 18 mechanical locking positions with air-actuated release.
- Non-slip textured lifting pad surface.
- Extendible lifting pad, from 61.25" to 81.5".
- Surface-mount or flush-mount configurations.
- ALI/ETL/CSA certified
Specifications
| Lifting Capacity | 9,000 lbs |
| Surface-Mount Maximum Raised Height | 79.75" |
| Flush-Mount Maximum Raised Height | 74.5" |
| Surface-Mount Lowered Height | 5.3" |
| Flush-Mount Lowered Height | 0" |
| Lift Pad Width | 25.5" |
| Overall Width | 82.5" |
| Lift Pad Length | 61.25" |
| Console Dimensions (DxWxH) | 12.3" x 14.9" x 40.5" |
| Lifting Time (with full load) | 53 seconds |
| Air Supply Requirements | 90 PSI |
| Shipping Weight | 2,700 lbs |
| Power Requirements | 230V, 1Ph, 60HZ |
Accessories
Optional Accessories
| Part Number | Description |
|---|---|

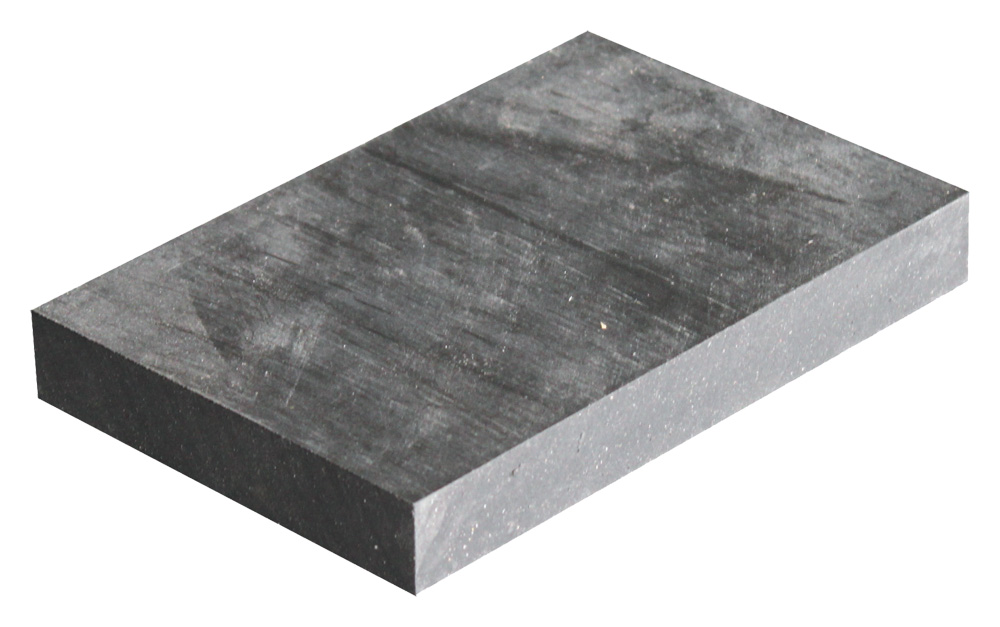

| SOE-VZ975586 | Flat Rubber Plates |
| SOE-VZ975586 | Ductile Plastic Blocks |
| SOE-VZ975074 | Hard Plastic Blocks |

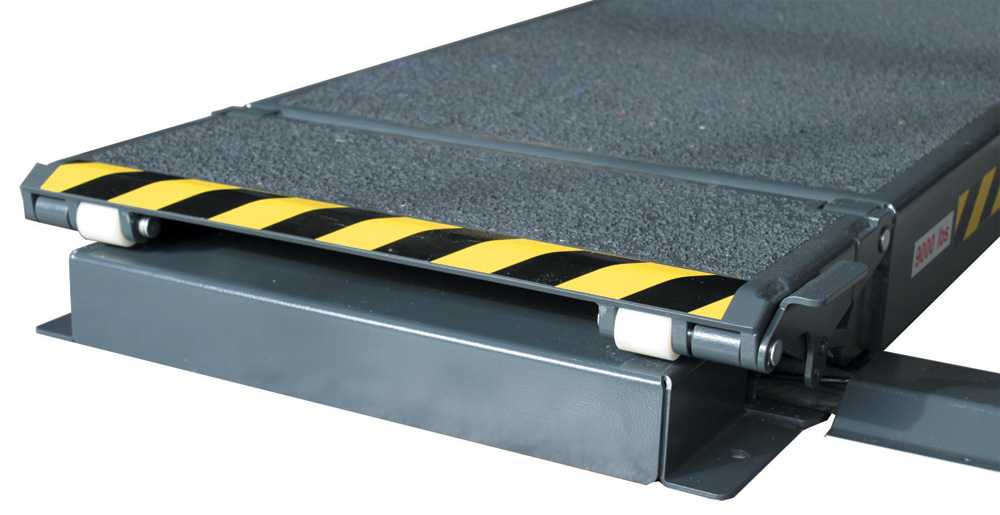

| SOE-VZ970133 | Foundation Insert Plates (for Flush-Mount) |

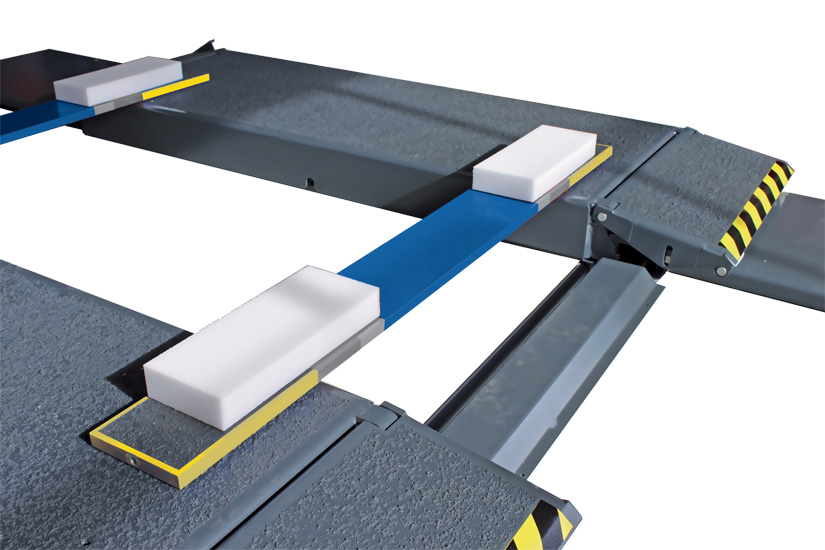

| SOE-VZ970127 | Aluminum Transverse Beam (3,300 lbs.) |

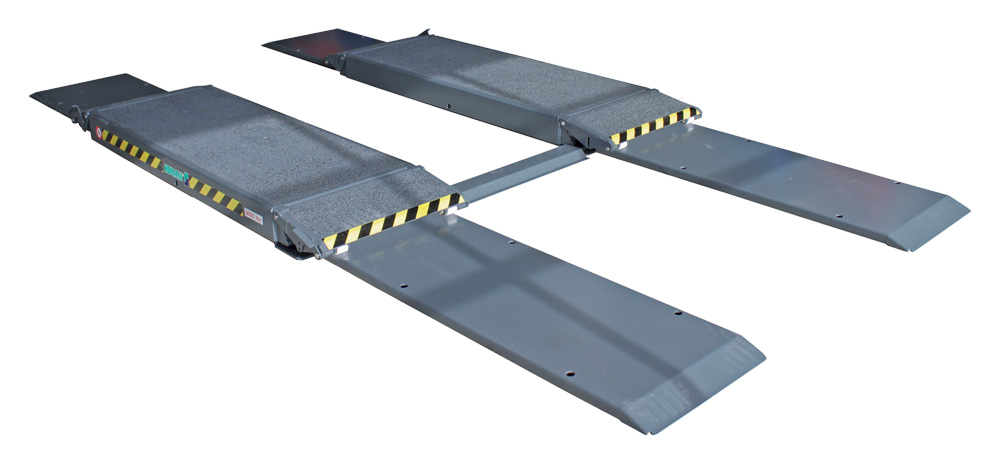

| SOE-VZ970125 | Drive-Over Ramps |
