15K 2-Post

DLS15016 (Symmetric)

This heavy-duty 2-post automotive/general-purpose lift allows tall vehicles to be raised to the max without interference! Standard low-profile telescoping arms with 3 sets of screw-in spindles and pads allow for level lifting of large vehicles.

Third-part tested, ANSI ALCTV-2006 standard, ALI certified by ETL.

Click on one of the section titles to learn more about the 15K 2-Post Automotive/General-Purpose Lift.

15K 2-Post Automotive Lift Features

• Single-point safety lock release for 2-hand lift lowering - keeps the operator safe while lowering the lift! (Locks automoatically re-engage when palm button is released.)
• Mechanical safety locks at 15 operating positions for added safety
• Cable-activated overhead safety switch
• Industrial-strength columns for increased strength and durability
• Pre-loaded lift arms are straight even when loaded!
• Dual pre-stressed equalizing cables ensure level lifting!
• Overhead beam reinforces lift structural integrity - 16.1’ adjustable down to 14.5’ if requested upon installation
• Low-profile telescoping arms with 3 sets of adjustable spindle pads; includes 5" and 10" extensions
• Heavy-duty threaded rod arm restraints engage when lift is raised
• ALI Certified by ETL to ANSI standard ALCTV-2006.

Back To Features List

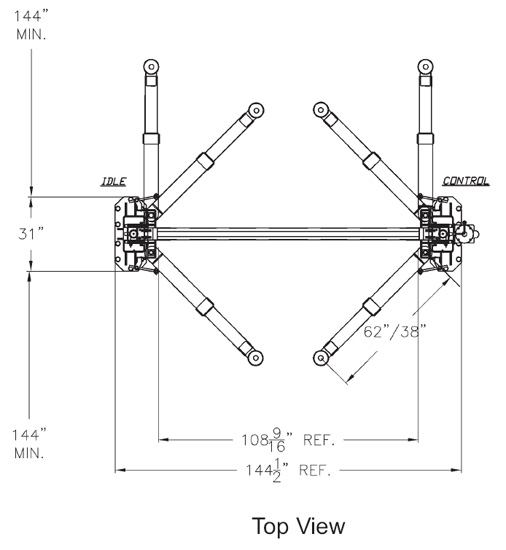

Line Drawings

This diagram is for promotion illustration purposes only, and should not be used as installation instructions. Contact your local Equipment Sales Specialist if further information is needed. Layout subject to change without notice.

Back To Features List | Back To Top

* Other Power Configurations Available.
