Product Overview

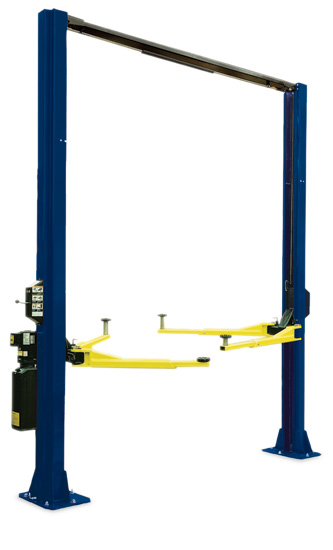

DLS1012 (12ft. Symmetric)
Hofmann 10K 2-Post automotive/general-purpose lifts are packed with premium features: industrial-strength columns, low-friction lift carriage slides, low-wear components with plated arm pins, greasable arm pin supports, steel pulleys, dual-friction overhead safety shut off and more.
Third-part tested, ANSI ALCTV-2006 standard, ALI certified by ETL.
Click on one of the section titles to learn more about the 10K 2-Post Automotive/General-Purpose Lift.
Features
- Single-point safety lock release for 2-hand lift lowering - keeps the operator safe while lowering the lift!
- Mechanical safety locks at 17 operating positions for added safety
- Dual-function micro-switch activates vehicle height safety rod and increases life span of drive motor and cylinders
- Industrial-strength columns for increased strength and durability
- Pre-loaded lift arms are straight even when loaded!
- Dual pre-stressed equalizing cables ensure level lifting!
- Overhead beam reinforces lift structural integrity
- Steel cable pulleys with oil-impregnated iron bushings reduce the need for maintenance and increases life of lift
- Stack pad style lift works with both cars and trucks, includes a set of 3" and 6" stack adapters
- Fully-supported arm pins prevent lifting arms from sagging. Nickel/zinc-plated arm pins increase lifting arm’s lifespan
- Bolt-on gear-cut arm restraints increase lifting arm stability
- ALI Certified by ETL to ANSI standard ALCTV-2006.
Specifications
| DLS1012 | DLS1014 | DLA1012 | DLA1014 | |
|---|---|---|---|---|
| Lifting Capacity | 10,000 lbs | 10,000 lbs | 10,000 lbs | 10,000 lbs |
| Overall Width | 147.75" | 147.75" | 140.75" | 140.75" |
| Overall Height | 144" | 168" | 144" | 168" |
| Width Between Posts | 120" | 120" | 106.75" | 106.75" |
| Maximum Lifting Height | 79.5" (with 6" adapters) | 79.5" (with 6" adapters) | 79.5" (with 6" adapters) | 79.5" (with 6" adapters) |
| Under Bar Clearance | 140" | 164" | 140" | 164" |
| Drive Through Width | 109" | 109" | 87.5" | 87.5" |
| Lifting Time | 45 seconds | 45 seconds | 45 seconds | 45 seconds |
| Shipping Weight | 1,545 lbs | 1,620 lbs | 1,545 lbs | 1,620 lbs |
| Power Requirements* | 230V, 1Ph, 60HZ | 230V, 1Ph, 60HZ | 230V, 1Ph, 60HZ | 230V, 1Ph, 60HZ |
* Other Power Configurations Available.
