BLA14178
This 14,000 lb. capacity lift is totally open between the runways from front to rear, allowing easy access to the complete undercar, increasing productivity. The 210" alignment-ready runway length allows shops to perform alignments on a variety of vehicle sizes. Large twin-interlocking serriform mechanical safety locks with 18 level and locked positions ensure alignment is level at all heights.
Click on one of the section titles to learn more about the 14K Scissor Alignment Lift.
 |
 |
 |
 |

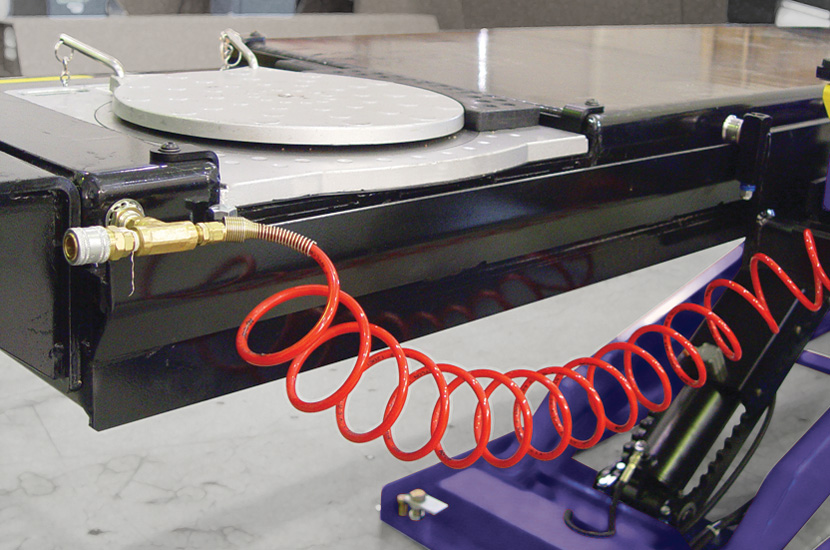

| A port can be added in for customer-supplied quick-connect allowing for an easy air tool connection point |

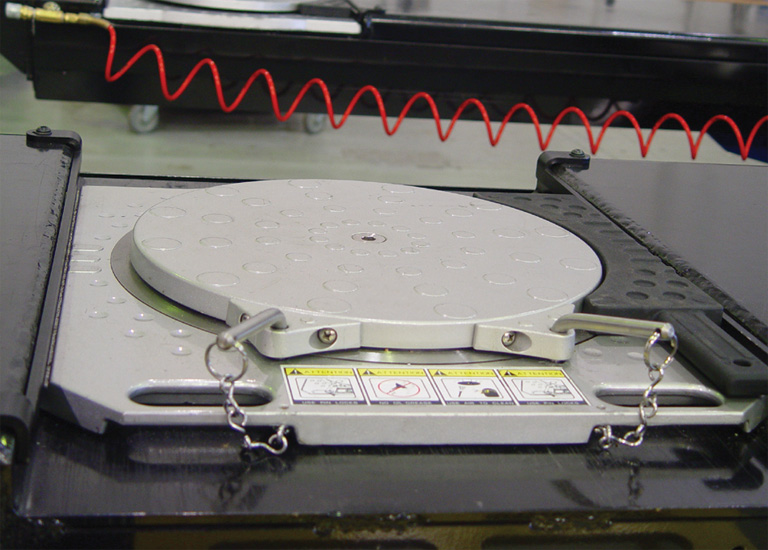

Optional premium turntables prevent runway scratching and allow for full range of motion when making alignment adjustments |

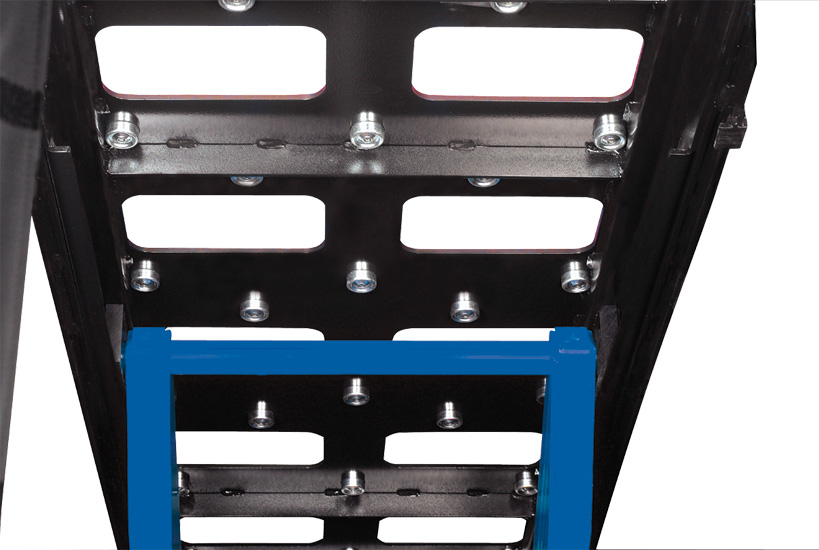

Durable 72" slip plates glide on over-sized roller balls, allowing for the range of motion required to perform rear alignment corrections. Slip plates are maintenance-free due to strategically-positioned openings in the runway, which quickly disperse water and dirt - allowing for reliable performance every time! |

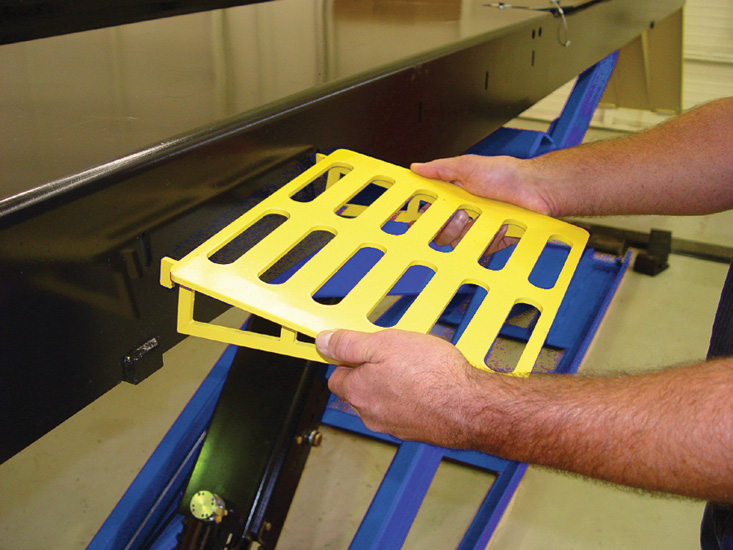

Work steps on each side can be adjusted to 8 different positions, granting easy access to underhood and steering wheel adjustments |
 |
 |
 |
 |

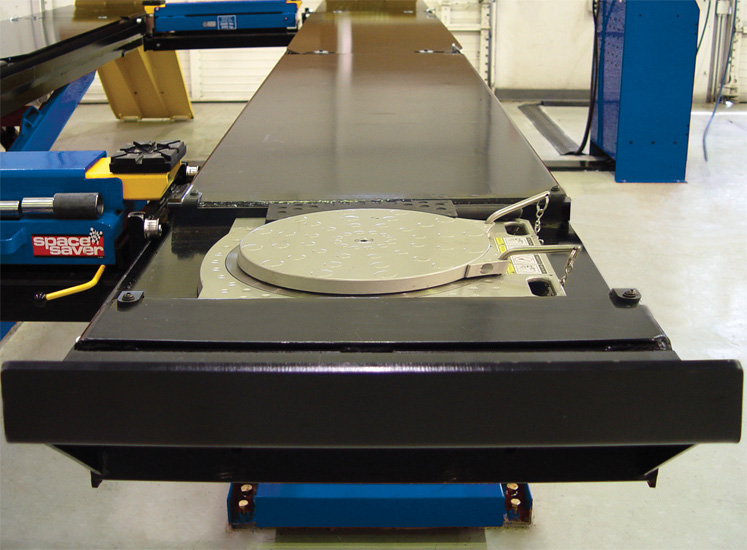

| Long and wide runways allow for alignment service on a wide range of vehicle widths and wheelbases |

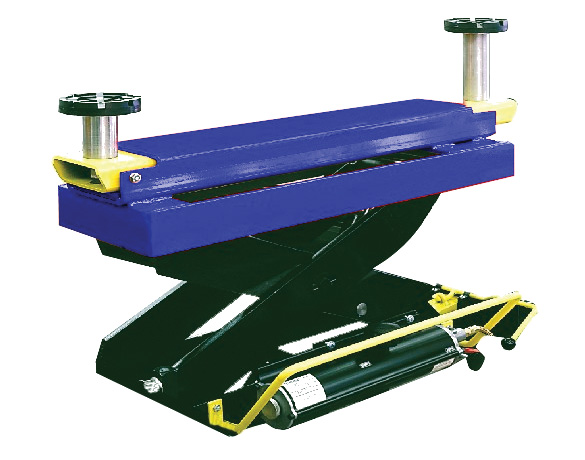

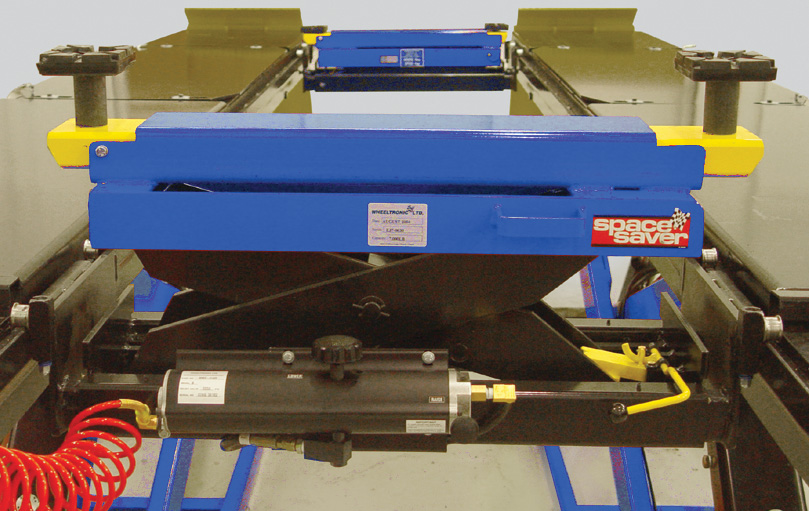

Roller Jacks incorporate a low-profile design - eliminating the need to swing away when the lift is lowered. High lifting heights enable more access for undercar repairs |

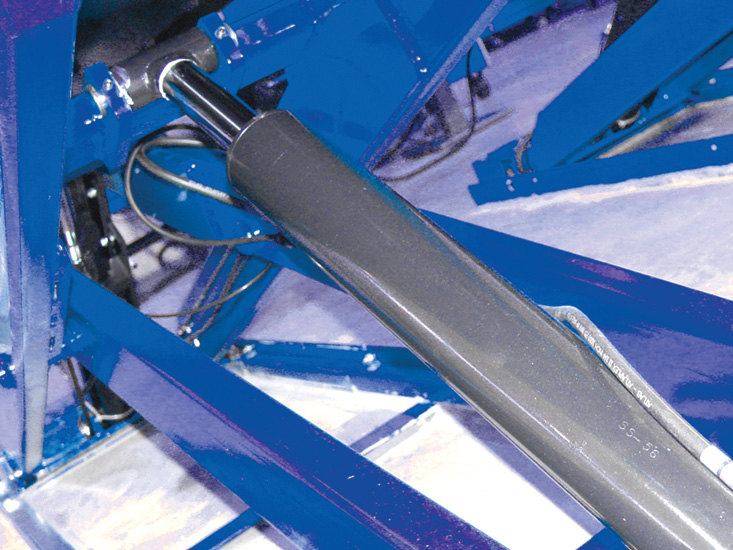

Quad-counterpoised lifting system and 4 powerful heavy-duty cylinders maintain a constant level from floor to full height |

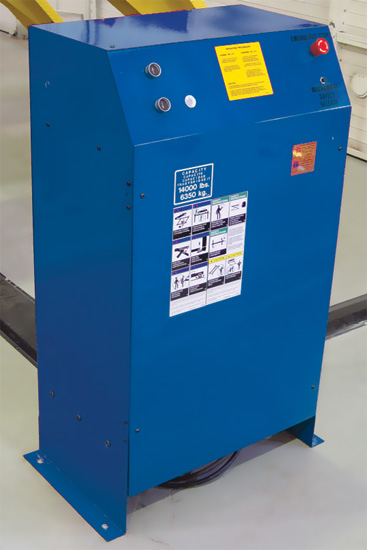

The operator console is completely enclosed, protecting electronic and hydraulic components |
 |
 |
 |
 |

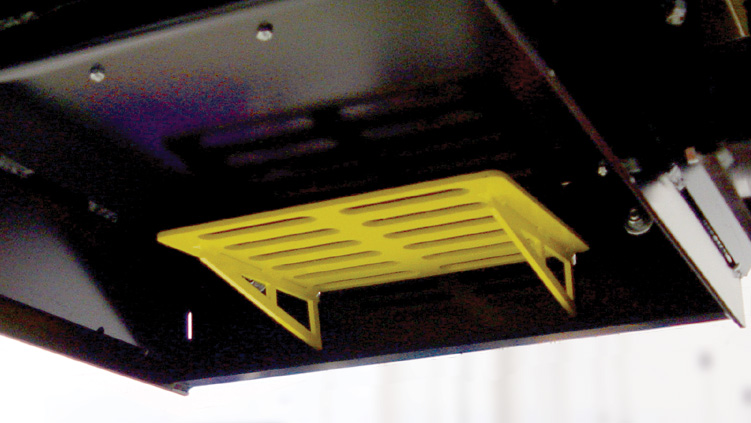

| Hidden, yet easy-to-reach, work step storage under the front of each runway |

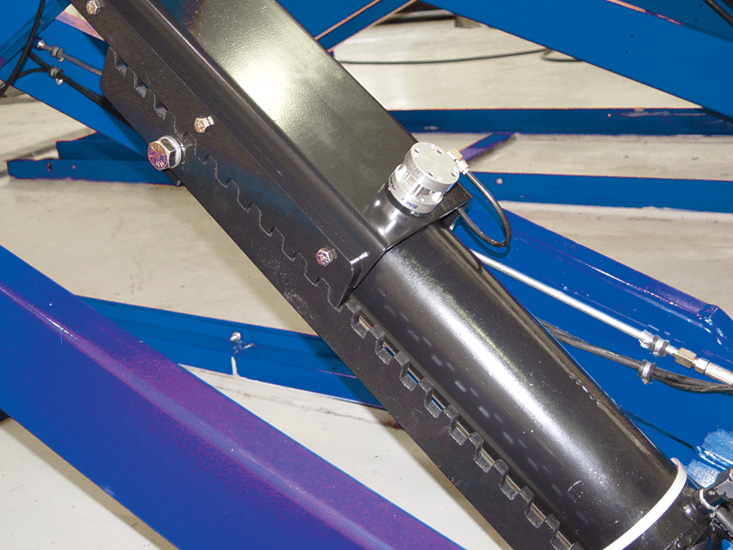

The triple safety system includes large twin-interlocking air-actuated mechanical safety locks featuring 18 level and locked positions, velocity fuses, and pressure-sensing flow control valves |

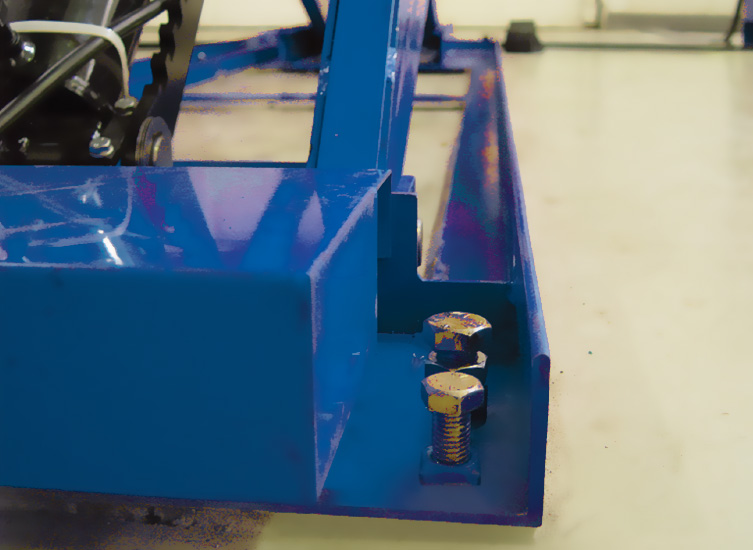

Full-length base frame allows for fast installation and increases durability |

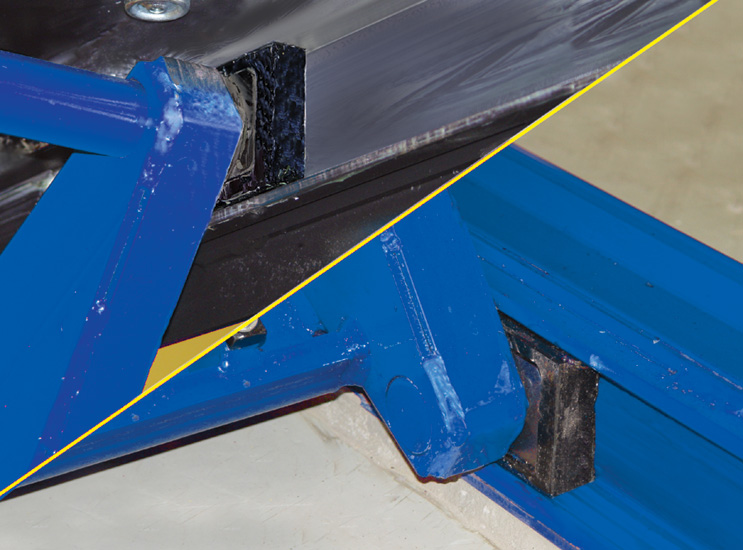

UHMW slide blocks allow for smooth and uniform lifting |
 |
 |

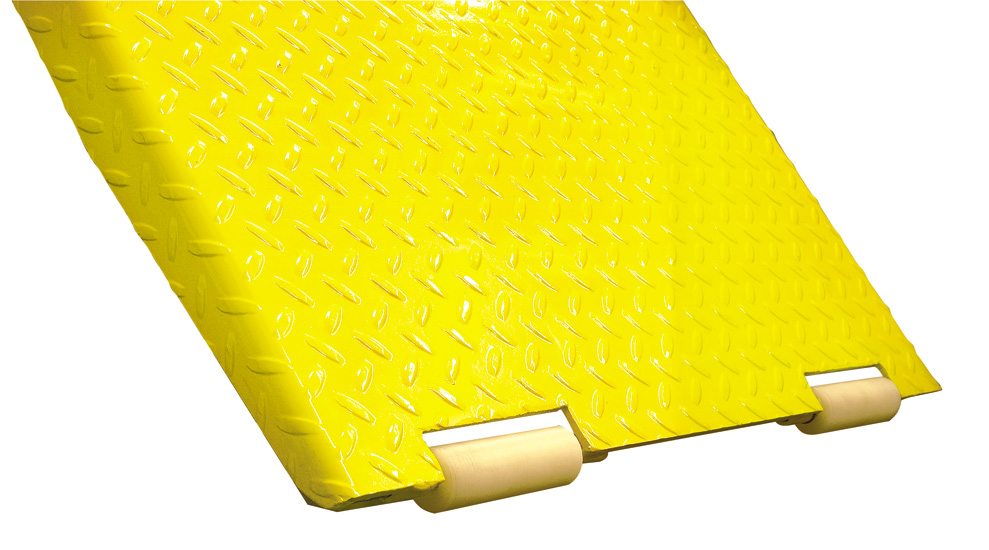

| Approach ramps have replaceable synthetic rollers which reduce noise and damage to floors when compared to metal rollers |

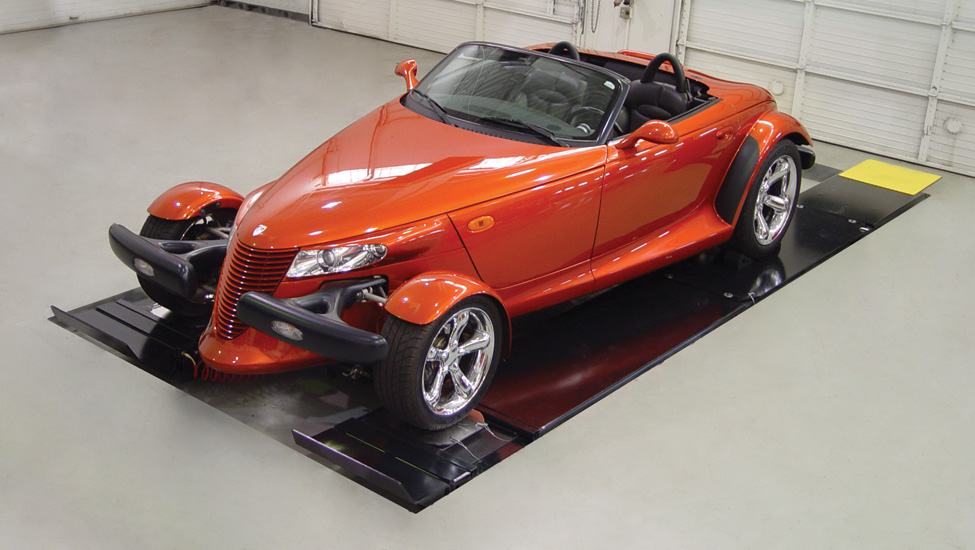

Flush-mount configuration (BLA14178FM) available with optional drive-through capability |
Back To Features List

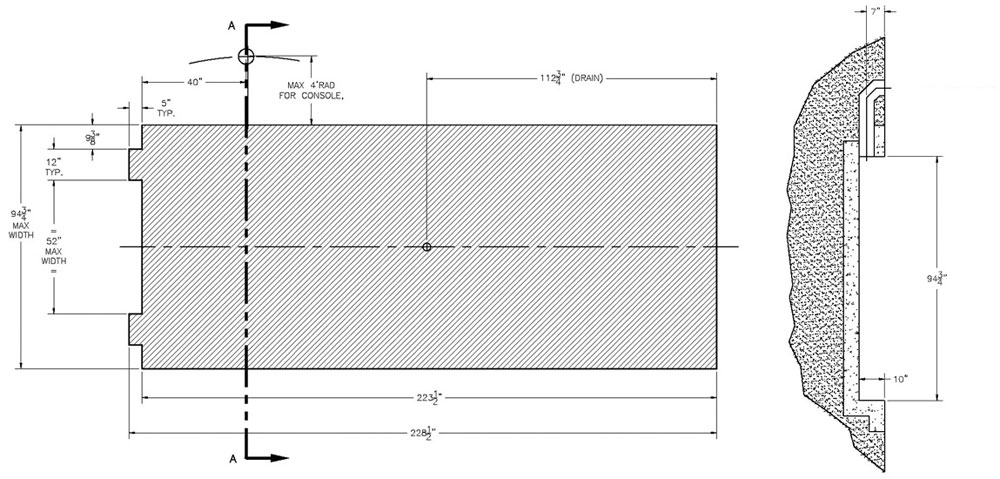

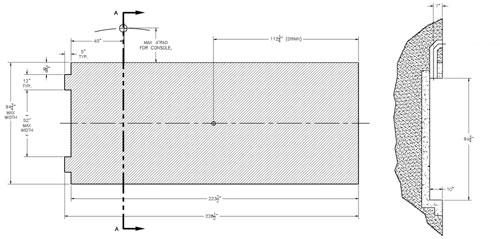

(BLA14178FM) Flush-Mount Pit Diagram

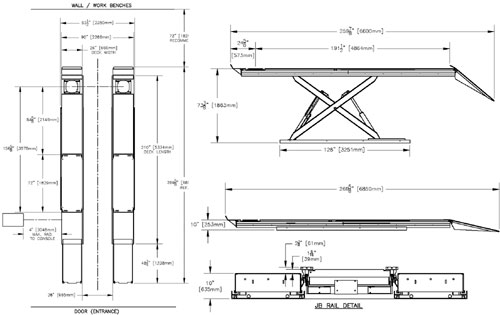

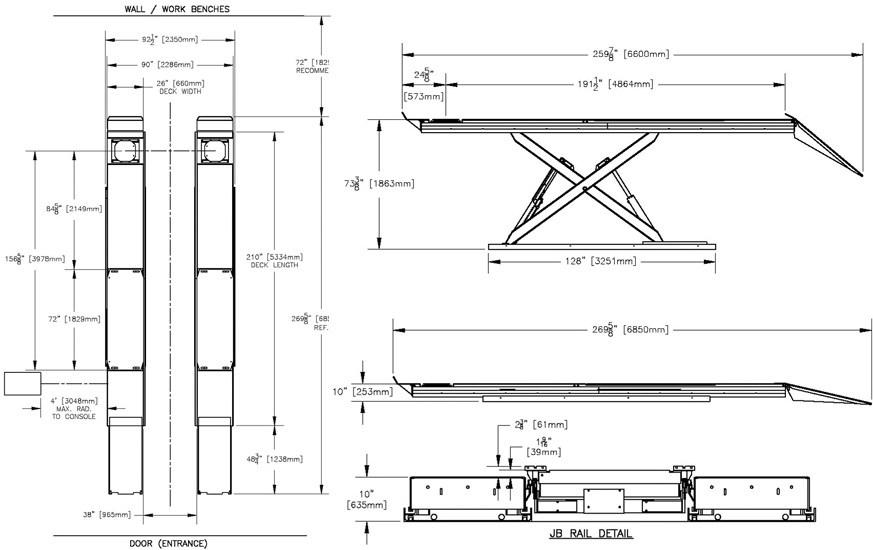

(BLA14178) Surface-Mount Diagram
These diagrams are for promotion illustration purposes only, and should not be used as installation instructions. Contact your local Equipment Sales Specialist if further information is needed. Layout subject to change without notice, request detailed layout drawing for pit construction.
