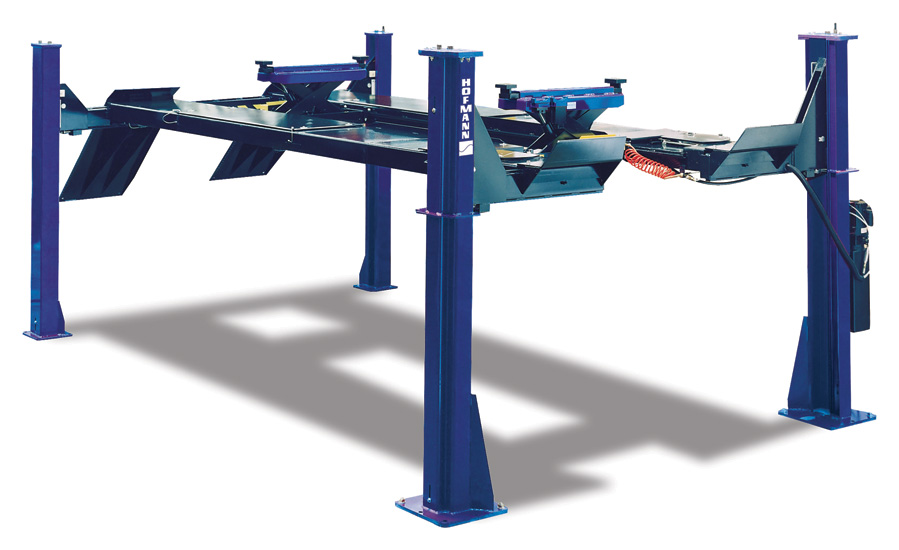

14K 4-Post Alignment Lifts

FPA14172

The 14,000 lb. capacity 4-post alignment lift features cutouts for optional turntables, 65" rugged rear slip plates, and built-in air connectors for optional Roller Jacks. The wide open front facilitates easy access - expanding service potential and profitability.

Click on one of the section titles to learn more about the 14K 4-Post Alignment Lift.

4-Post Lift Cable Safety Advisory

• Alignment level at 21 positions or flat runway version for multi-purpose vehicle servicing.
• Integrated air kit for optional Roller Jacks.
• 65" full-floating rear slip plates for longer wheelbase potential.
• Triple Safety System:
  • Safety locks in each column with single-point release.
  • Auto-engaging mechanical drop locks.
  • Velocity fuses on all hydraulically-operated components.
• Patented roll-formed front towers with Dura-Glide lifting system - integrates low-wear, Ultra-High Molecular-Weight polyethylene glide blocks to ensure long-term alignment accuracy.
• Wide, open front facilitates easy access - expands service potential and profitability.
• Heavier 9/16" 6x37 pre-stressed cables for long life and added safety.
• 24" Pro-Style runways for wide-track vehicles and no runway adjustment.
• Hidden lifting cylinder under the runway adds accessibility and no vehicle door damage.
• Larger 8" cast iron pulleys and fiber-wound bushings for less wear and longer cable life.
• Multi-position nylon polyethylene slip plate cage with DelrinT bearings for improved wear and serviceability.
• Longer 52" approach ramps provide gentle drive-on angle for low-profile vehicles.
• Optional heavy-duty premium turntables increase alignment profitability.
• ALI/ETL/CSA Certified.

* Other Power Configurations Available.

Optional Accessories
