12K Scissor Alignment Lifts

BLA12172

Hofmann’s 12K Scissor Alignment Lifts offer A generous 12,000 lb. lifting capacity with a smaller configuration than the larger 14K. This lift accommodates low-profile vehicles and allows for comfortable stand-up working positions.

Click on one of the section titles to learn more about the 12K Scissor Alignment Lift.

12K Scissor Alignment Lift Features

• Starts Lower: 8.75" drive-on height for low-profile vehicles.
• Lifts Higher: 72" raised height for comfortable working conditions.
• Uses Less Space: Five Scissor Alignment Lifts installed side-by-side utilize the same space as four 4-Post Alignment Lifts.
• Lifts Straight Up: No fore or aft movement
• Wide 28" Runways and Long 65" Rear Slip Plates: Allow for maximum alignment capability.
• Open Center: Front and rear for optimum accessibility on BLA12172. (Front and rear tie bar and leveling legs on model SLA12172.)
• Hydraulic Synchronization: Provides low maintenance - no chains or cables to wear out.
• Free-Standing Console: Located on driver side with push-button controls for maximum convenience.
• Two Safety Mechanisms for Operator Protection:
  • Hydraulic velocity fuses located on both cylinders.
  • Visual/audible mechanical safety locks engage automatically when lift is raised.
• 52" Approach Ramps: Provide gentler drive-on angle for low-profile vehicles.
• Integrated Air Kit: For optional Roller Jacks (RJ216) - expands service versatility.

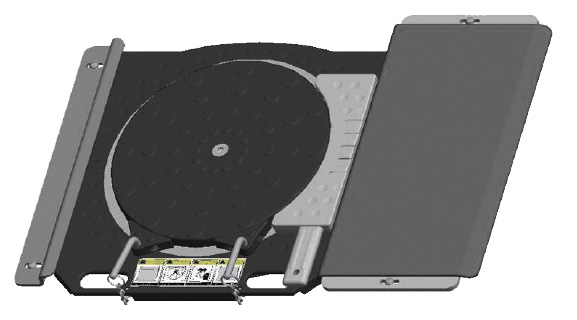

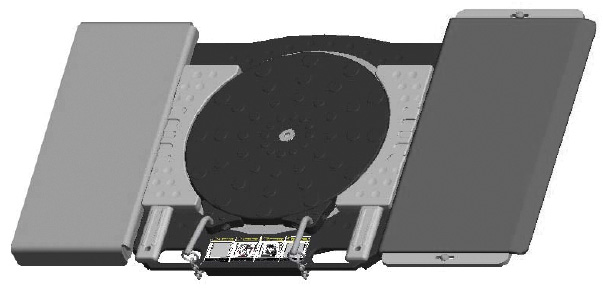

• Optional Premium Turntables: EAK0289J06A.
• Flush-mount configurations available.
• ALI/ETL/CSA Certified.

Back To Features List

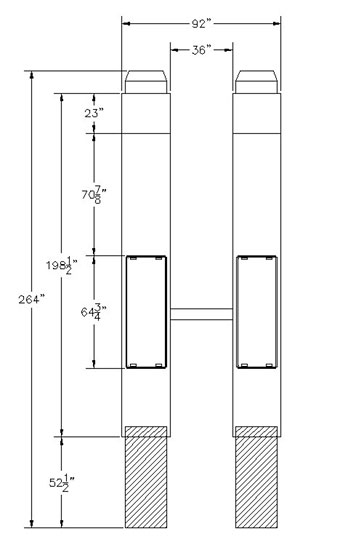

Line Drawings

(BLA12172) Surface-Mount

This diagram is for promotion illustration purposes only, and should not be used as installation instructions. Contact your local Equipment Sales Specialist if further information is needed. Layout subject to change without notice, request detailed layout drawing for pit construction.

Back To Features List | Back To Top

Optional Accessories
