Product Overview
BLA10195H (Surface-Mount), BLA10195HFM (Flush-Mount)
BLA10205H (Surface-Mount), BLA10205HFM (Flush-Mount)
This lift comes in two wheelbase lengths (165"/175") in both flush-mount and surface-mount configurations to meet the needs of a wide variety of shops. The 10K Scissor Alignment Lift’s heavy-duty 26" wide runways provide alignment accuracy for cars and dual wheel trucks.
Click on one of the section titles to learn more about the 10K Scissor Alignment Lift.
Features
10K Scissor Alignment Lift Features
- Totally open access between the runways front to rear.
- Proportionally-controlled, hydraulically-synchronized lifting systems with 2 powerful heavy-duty lifting cylinders to maintain level from floor to 73" of lifting height.
- Durable 72" slip plates glide on over-sized roller balls, allowing for the range of motion required to perform rear alignment corrections. Slip plates are maintenance-free due to strategically-positioned openings in the runway, which quickly disperse water and dirt - allowing for reliable performance every time!
- Long and wide runways allow for alignment service on a wide range of vehicle widths and wheelbases.
- Work steps on each side can be adjusted to 8 different positions, granting easy access to underhood and steering wheel adjustments.
- The triple safety system includes air-actuated mechanical locks, velocity fuses, and pressure-sensing flow control valves.
- Low-profile stance of 9" allows gentle drive-on approach for low-profile vehicles.
- Integrated Air Kit: For optional Roller Jacks.
- ALI/ETL/CSA Certified.

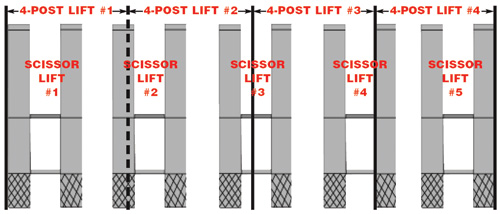

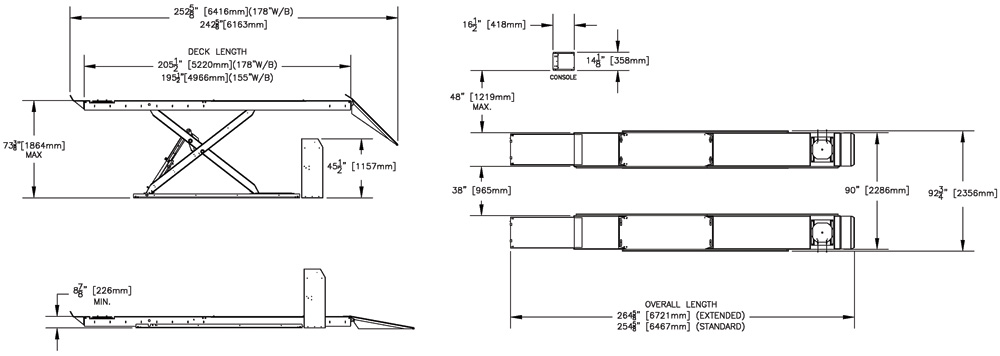

Line Drawings

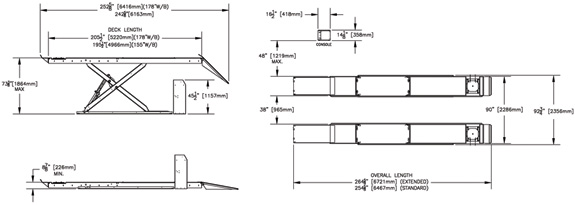

(BLA10195H/BLA10205H) Surface-Mount
This diagram is for promotion illustration purposes only, and should not be used as installation instructions. Contact your local Equipment Sales Specialist if further information is needed. Layout subject to change without notice.
Specifications
| BLA10195H | BLA10205H | BLA10195HFM | BLA10205HFM | |
|---|---|---|---|---|
| Lifting Capacity | 10,000 lbs | 10,000 lbs | 10,000 lbs | 10,000 lbs |
| Overall Width | 92.75" | 92.75" | 92.75" | 92.75" |
| Overall Length | 254.625" | 264.625" | 218.625" | 228.625" |
| 4-Wheel Alignment Wheelbase | 155" | 155" | 155" | 155" |
| 2-Wheel Alignment Wheelbase | 165" | 175" | 165" | 175" |
| Service Wheelbase | 179" | 189" | 179" | 189" |
| Runway Surface | 195.5" | 205.5" | 195.5" | 205.5" |
| Maximum Raised Height | 73.5" | 73.5" | 73.5" | 73.5" |
| Maximum Lowered Height | 9" | 9" | 9" | 9" |
| Lifting Time | 80 seconds | 80 seconds | 80 seconds | 80 seconds |
| Shipping Weight | 4,430 lbs | 4,630 lbs | 4,280 lbs | 4,480 lbs |
| Power Requirements | 230V, 1Ph, 60HZ | 230V, 1Ph, 60HZ | 230V, 1Ph, 60HZ | 230V, 1Ph, 60HZ |
Accessories
Standard Accessories
| Part Number | Description |
|---|---|

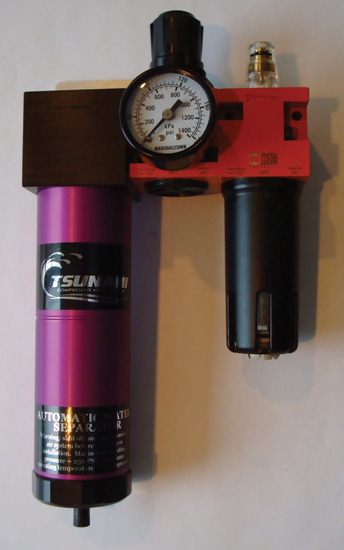

| JBC0100 | Tsunami Kit (Water Separator/Regulator/Lubricator Kit) |
Optional Accessories
| Part Number | Description |
|---|---|

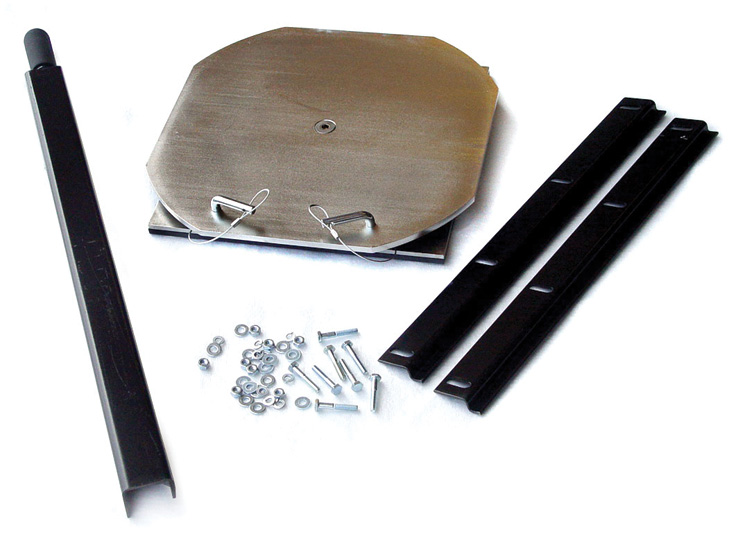

| JBC054R | Stainless Steel Turntables (Includes Rollback Bars. Dimensions (LxWxH): 14.75" x 14.75" x 1.37") |

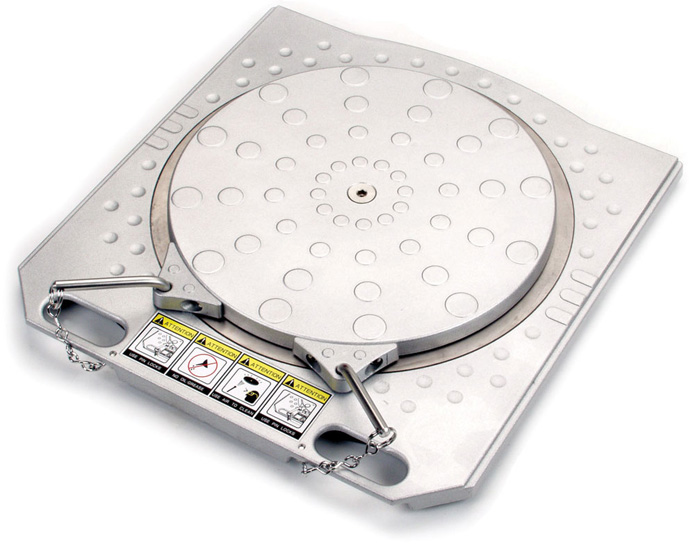

| EAK0289J06A | Premium Turntables (Dimensions (LxWxH): 18.5" x 19.7" x 2") |

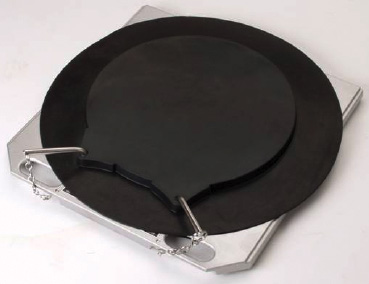

| EAK0277J57A | Dust Cover for Premium Turntables |

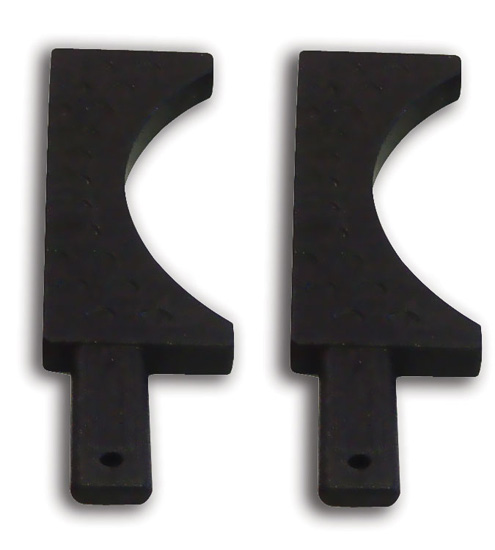

| EAK0277J28A | Paddle Kit for Premium Turntables |

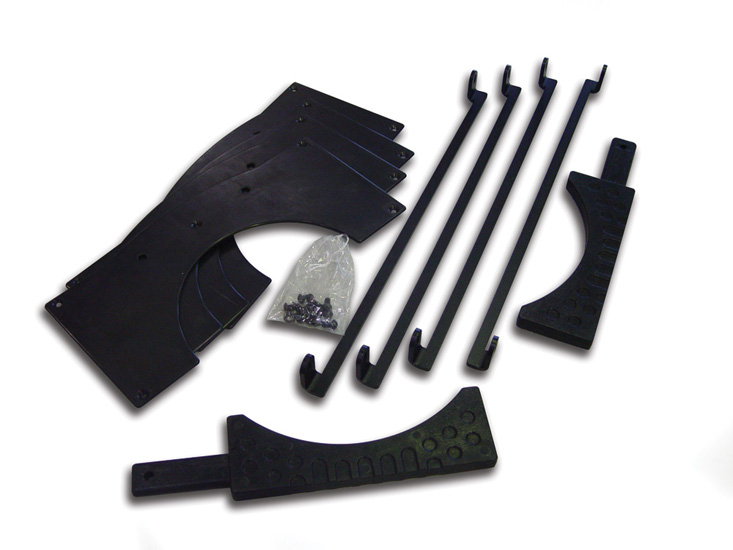

| EAK0277J67A | 10K/14K Scissor Roll-back Kit |

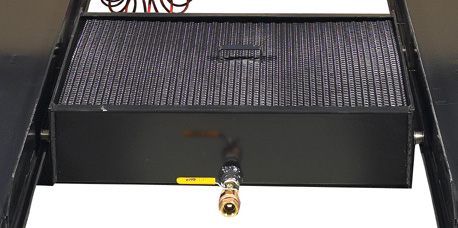

| JBC01200000 | Sliding Waste Oil Collection Tank (26 gallon) |

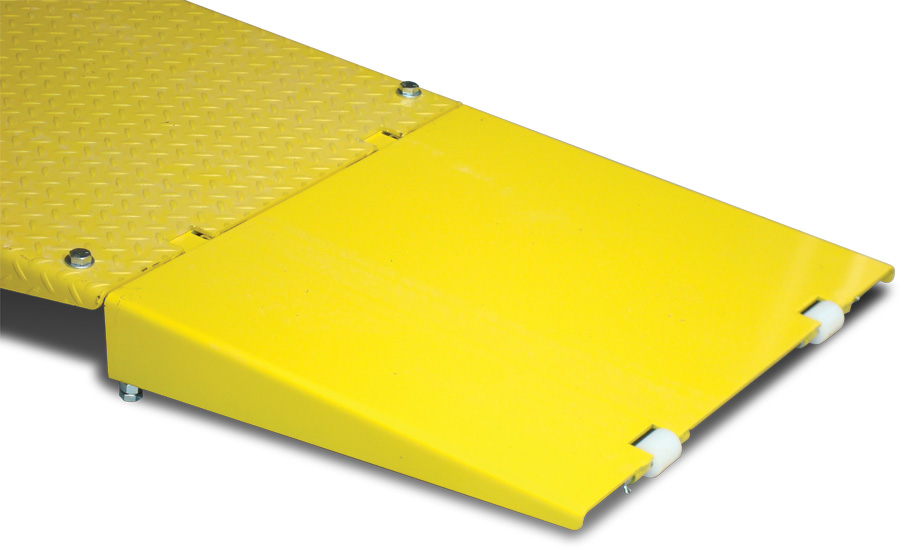

| JBC0102 | Ramp Extension Kit (For Surface-Mount lifts only) |
| JBC046 | Rollback Rubber Pads (Set of 2) |
